AL176 - HOLI Scale's AL176 Single Point Load Cell: Pushing the Boundaries of Precision Weighing

Name: AL176 - HOLI Scale's AL176 Single Point Load Cell: Pushing the Boundaries of Precision Weighing
Brand: HOLI
Rating: 5.0 (62 reviews)

Experience next-level precision with HOLI Scale's AL176 load cell, boasting an unmatched 2000kg weighing capability. Crafted with premium aluminium and advanced technology, the AL176 is the industry's answer to large-scale, high-accuracy weighing. Compare with the AL174 and witness the evolution in weighing solutions.

Model:
AL176
Brand:
HOLI
Certificates:
CE, OIML, NTEP, RoHS

Availability:

Quantity:



Inquiry Contact Now

Product Description

Product Description：

Capacity: 500kg to 2000kg

The AL 176 load cell from HOLI Scale is a high-precision, single point load cell certified by OIML and NTEP. Precision and performance in the world of weighing instruments have a new name: the AL176 load cell by HOLI Scale. As industries constantly seek to push the envelope, the AL176 stands as an epitome of advanced weighing engineering.

Key Features:

High-quality anodized aluminium alloy steel for durability and strength
OIML Approved and NTEP Approved for trusted precision
Ideal for many types of scale parts like bench and platform scales
Compact size, easy to install and use
Reliable and accurate load cell for daily weighing tasks

Choose the HOLI Scale AL176 for confidence in every measurement – precision and performance you can depend on.

Model	Products Description
AL 176-500kg	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 176-750kg	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 176-1000kg	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 176-2000kg	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 176-550lb	NTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 176-1650lb	NTEP aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 176-2200lb	NTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-4400lb	NTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.

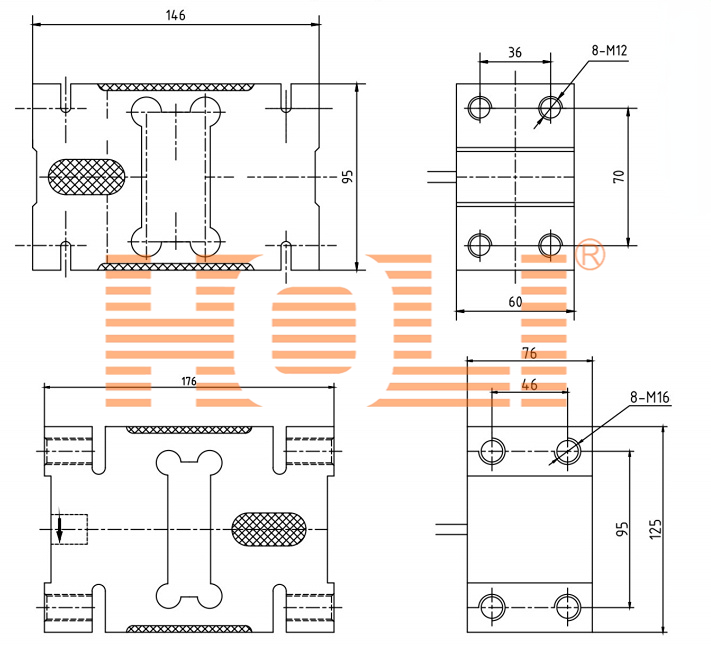

Product dimensions(mm):

AL 176

Aluminium Single-Point Load Cell AL176
Parameter		Specifications				Units
Rated capacity (Emax)		500/ 750/ 1000/ 2000				kg
		550/1100/ 1650/ 2200/ 4400				lb
Accuracy class		C3	C3MR	C5	C6
Maximum number of LC intervals (Nmax)		3000	2*3000	5000	6000
Min. LC verification interval (Vmin)		Emax / 5000	Emax / 10000			g
Zero balance		±0.1				mV/V
Min.dead load		0				kg
Rated output		2.0				mV/V
Rated output tolerance		± 0.2				mV/V
Pepeatability		± 0.010	± 0.010	± 0.006	± 0.005	% of AL*
Creep 30 minute		± 0.017	± 0.017	± 0.0010	± 0.0083	% of AL
Temp. effect on rated output +20...+40℃		± 0.00175	± 0.00175	± 0.00105	± 0.00087	% of Emax/℃
-10...+20℃		± 0.00117	± 0.00117	± 0.0007	± 0.00058	% of AL/℃
Temp. effect on zero balance		± 0.0028	± 0.0014			% of Emax/℃
Hysteresis error		± 0.0175	± 0.0175	± 0.0105	± 0.0105	% of Emax
Non-linearity error		± 0.0175	± 0.0175	± 0.0105	± 0.0105	% of Emax
Min. dead load output return		± 0.0166	± 0.0166	± 0.0100	± 0.0083	% of AL
Offer center load error (OIML R76)		± 0.0044	± 0.0044	± 0.0026	± 0.0022	% of AL/cm
Input resistance		404± 15				Ω
Output resistance		350 ± 3				Ω
Insulation resistance @50VDC		＞5000				MΩ
Excitation voltage	Recommended	10				V AC/DC
	Maximum	15				V AC/DC
Temperature range	Compensated	-10 to +40				℃
	Operating	-10 to +50				℃
	Safe storage	-25 to +70				℃
Load limit	Safe	150				% of Emax
	Ultimate	300				% of Emax
Protection	Type	Silicone rubber over gage
	IP rating	IP65
OIML / European Approval	OIML Cert. No.	R60/2017-A-NL1-21.06
	European Cert. No.	TC11566
	Class	C6
	nmax	6000
NTEP Approval	Cert. No.	23-029
	Class	Ⅲ
	nmax	6000
Cable	Length	1.5				m
	Type	4 or 6 cores, PVC
Construction		Aluminium
Maximum platform size		1200×1200				mm
Recommended torque		500kg to 1000kg: 98.0/ above 1000kg: 140.0				N.m
Notes: The values for linearity, hysteresis and temp. effect on rated output are recommended values, the sum of these data meets the requirements according to OIML R60. *AL: Applied load.
