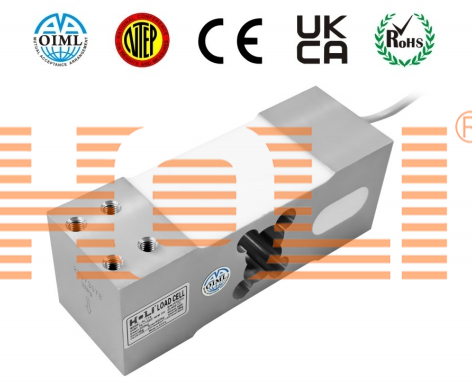

AL174 - HOLI Scale's AL174 Single Point Load Cell: Ushering in a New Era of Weighing Precision

Name: AL174 - HOLI Scale's AL174 Single Point Load Cell: Ushering in a New Era of Weighing Precision
Brand: HOLI
Rating: 5.0 (20 reviews)

Introducing HOLI Scale's AL174 load cell, a game-changer in high-precision weighing with a robust capacity of up to 1000kg. Crafted with premium aluminium and cutting-edge technology, the AL174 sets a new industry standard. Experience unparalleled accuracy with HOLI Scale's finest.

Model:
AL174
Brand:
HOLI
Certificates:
CE, OIML, NTEP, RoHS

Availability:

Quantity:



Inquiry Contact Now

Product Description

Product Description:

Capacity: 50kg to 1000kg

The AL174 load cell from HOLI Scale is a high-precision, single point load cell certified by OIML and NTEP. In the realm of high-precision weighing, there's a new benchmark in town: the HOLI Scale's AL174 load cell. As industries evolve and the demand for accurate measurement solutions intensifies, the AL174 emerges as a cutting-edge instrument designed to elevate weighing processes to new heights.

Key Features:

Robust aluminium alloy steel construction
Anodized surface for added durability
OIML Approved and NTEP Approved for certified weighing
Ideal for use in platform, bench, and custom scale parts
Excellent repeatability and long-term stability

Perfect for businesses that need trusted performance and smooth integration, the AL174 load cell is a top choice for precision weighing.

Model	Products Description
AL 174-50kg	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-100kg	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-150kg	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-200kg	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-300kg3	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-500kg	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-750kg	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-1000kg	OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-130lb	NTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-220lb	NTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-660lb	NTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-1100lb	NTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 174-1650lb	NTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.

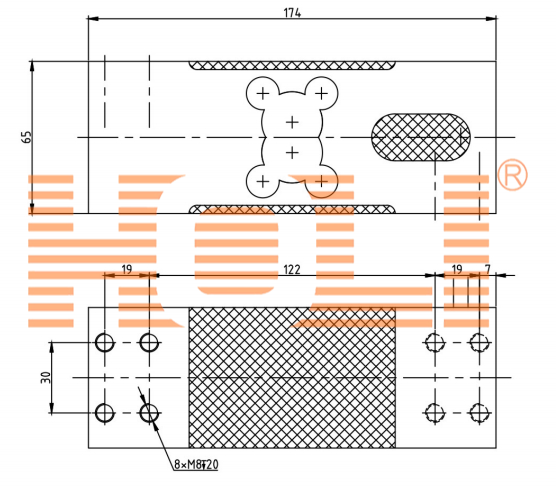

Product dimensions(mm):

AL174

Aluminium Single-Point Load Cell AL174
Parameter		Specifications				Units
Rated capacity (Emax)		50/ 100/ 150/ 200/ 250/ 300/ 500/ 750/ 1000				kg
		130/220/ 660/ 1100/ 1650				lb
Accuracy class		C3	C3MR	C5	C6
Maximum number of LC intervals (Nmax)		3000	2*3000	5000	6000
Min. LC verification interval (Vmin)		Emax / 5000	Emax / 10000			g
Zero balance		±0.1				mV/V
Min.dead load		0				kg
Rated output		2.0				mV/V
Rated output tolerance		± 0.2				mV/V
Pepeatability		± 0.010	± 0.010	± 0.006	± 0.005	% of AL*
Creep 30 minute		± 0.017	± 0.017	± 0.0010	± 0.0083	% of AL
Temp. effect on rated output +20...+40℃		± 0.00175	± 0.00175	± 0.00105	± 0.00087	% of Emax/℃
-10...+20℃		± 0.00117	± 0.00117	± 0.0007	± 0.00058	% of AL/℃
Temp. effect on zero balance		± 0.0028	± 0.0014			% of Emax/℃
Hysteresis error		± 0.0175	± 0.0175	± 0.0105	± 0.0105	% of Emax
Non-linearity error		± 0.0175	± 0.0175	± 0.0105	± 0.0105	% of Emax
Min. dead load output return		± 0.0166	± 0.0166	± 0.0100	± 0.0083	% of AL
Offer center load error (OIML R76)		± 0.0044	± 0.0044	± 0.0026	± 0.0022	% of AL/cm
Input resistance		404± 15				Ω
Output resistance		350 ± 3				Ω
Insulation resistance @50VDC		＞5000				MΩ
Excitation voltage	Recommended	10				V AC/DC
	Maximum	15				V AC/DC
Temperature range	Compensated	-10 to +40				℃
	Operating	-10 to +50				℃
	Safe storage	-25 to +70				℃
Load limit	Safe	150				% of Emax
	Ultimate	300				% of Emax
Protection	Type	Silicone rubber over gage
	IP rating	IP65
OIML / European Approval	OIML Cert. No.	R60/2017-A-NL1-22.23
	European Cert. No.	TC11565
	Class	C6
	nmax	6000
NTEP Approval	Cert. No.	23-026
	Class	Ⅲ
	nmax	6000
Cable	Length	2.5				m
	Type	4 or 6 cores, PVC
Construction		Aluminium
Maximum platform size		600×600				mm
Recommended torque		50kg to 300kg: 25.0/ above 300kg: 30.0				N.m
Notes: The values for linearity, hysteresis and temp. effect on rated output are recommended values, the sum of these data meets the requirements according to OIML R60. *AL: Applied load.
