AL130W - the Superiority of HOLI Scale's AL130W Single Point Load Cell

Name: AL130W - the Superiority of HOLI Scale's AL130W Single Point Load Cell
Brand: HOLI
Rating: 5.0 (74 reviews)

Discover the excellence of HOLI Scale's AL130W load cell. Unique in dimensions compared to AL130 & AL130L, this aluminium single-point load cell offers superior precision for diverse weighing applications. Experience accuracy and durability with HOLI Scale's craftsmanship.

Model:
AL 130W
Brand:
HOLI
Certificates:
CE, OIML, NTEP, RoHS

Availability:

Quantity:



Inquiry Contact Now

Product Description

Product Description:

Capacity: 40kg to 200kg

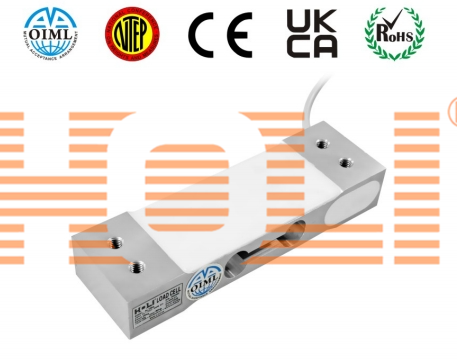

The AL130W load cell from HOLI Scale is a high-precision, single point load cell certified by OIML and NTEP. The load cell is designed to be bigger size to withstand heavy loads and frequent use. This durability ensures that it can maintain their accuracy even under demanding conditions, such as heavy industrial environments or high-cycle applications.

Model	Products Description
AL 130W-40kg	OIML, aluminium alloy steel, 1.5m wire with 4 or 6 cores.
AL 130W-50kg	OIML, aluminium alloy steel, 1.5m wire with 4 or 6 cores.
AL 130W-100kg	OIML, aluminium alloy steel, 1.5m wire with 4 or 6 cores.
AL 130W-200kg	OIML, aluminium alloy steel, 1.5m wire with 4 or 6 cores.
AL 130W-66lb	NTEP, aluminium alloy steel, 1.5m wire with 4 or 6 cores.
AL 130W-88lb	NTEP, aluminium alloy steel, 1.5m wire with 4 or 6 cores.
AL 130W-110lb	NTEP, aluminium alloy steel, 1.5m wire with 4 or 6 cores.
AL 130W-220lb	NTEP, aluminium alloy steel, 1.5m wire with 4 or 6 cores.
AL 130W-330lb	NTEP, aluminium alloy steel, 1.5m wire with 4 or 6 cores.
AL 130W-440lb	NTEP, aluminium alloy steel, 1.5m wire with 4 or 6 cores.

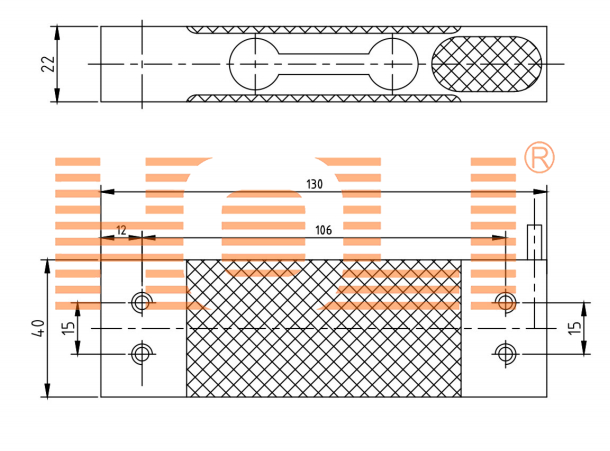

Product dimensions:

AL130W

Aluminium Single-Point Load Cell AL 130W
Parameter		Specifications				Units
Rated capacity (Emax)		40 /50 / 100/ 200				kg
		66/ 88 / 110 /220 / 330 / 440				lb
Accuracy class		C3	C3MR	C5	C6
Maximum number of LC intervals (Nmax)		3000	2*3000	5000	6000
Min. LC verification interval (Vmin)		Emax / 5000	Emax / 10000			g
Zero balance		±0.1				mV/V
Min.dead load		0				kg
Rated output		2.0				mV/V
Rated output tolerance		± 0.2				mV/V
Pepeatability		± 0.010	± 0.010	± 0.006	± 0.005	% of AL*
Creep 30 minute		± 0.017	± 0.017	± 0.0010	± 0.0083	% of AL
Temp. effect on rated output +20...+40℃		± 0.00175	± 0.00175	± 0.00105	± 0.00087	% of Emax/℃
-10...+20℃		± 0.00117	± 0.00117	± 0.0007	± 0.00058	% of AL/℃
Temp. effect on zero balance		± 0.0028	± 0.0014			% of Emax/℃
Hysteresis error		± 0.0175	± 0.0175	± 0.0105	± 0.0105	% of Emax
Non-linearity error		± 0.0175	± 0.0175	± 0.0105	± 0.0105	% of Emax
Min. dead load output return		± 0.0166	± 0.0166	± 0.0100	± 0.0083	% of AL
Offer center load error (OIML R76)		± 0.0044	± 0.0044	± 0.0026	± 0.0022	% of AL/cm
Input resistance		404± 15				Ω
Output resistance		350 ± 3				Ω
Insulation resistance @50VDC		＞5000				MΩ
Excitation voltage	Recommended	10				V AC/DC
	Maximum	15				V AC/DC
Temperature range	Compensated	-10 to +40				℃
	Operating	-10 to +50				℃
	Safe storage	-25 to +70				℃
Load limit	Safe	150				% of Emax
	Ultimate	300				% of Emax
Protection	Type	Silicone rubber over gage
	IP rating	IP65
OIML / European Approval	OIML Cert. No.	R60/2017-A-NL1-22.21
	European Cert. No.	TC11563
	Class	C6
	nmax	6000
NTEP Approval	Cert. No.	23-028
	Class	Ⅲ
	nmax	6000
Cable	Length	1.5				m
	Type	4 or 6 cores, PVC
Construction		Aluminium
Maximum platform size		300×400				mm
Recommended torque		10.0				N.m
Notes: The values for linearity, hysteresis and temp. effect on rated output are recommended values, the sum of these data meets the requirements according to OIML R60. *AL: Applied load.
