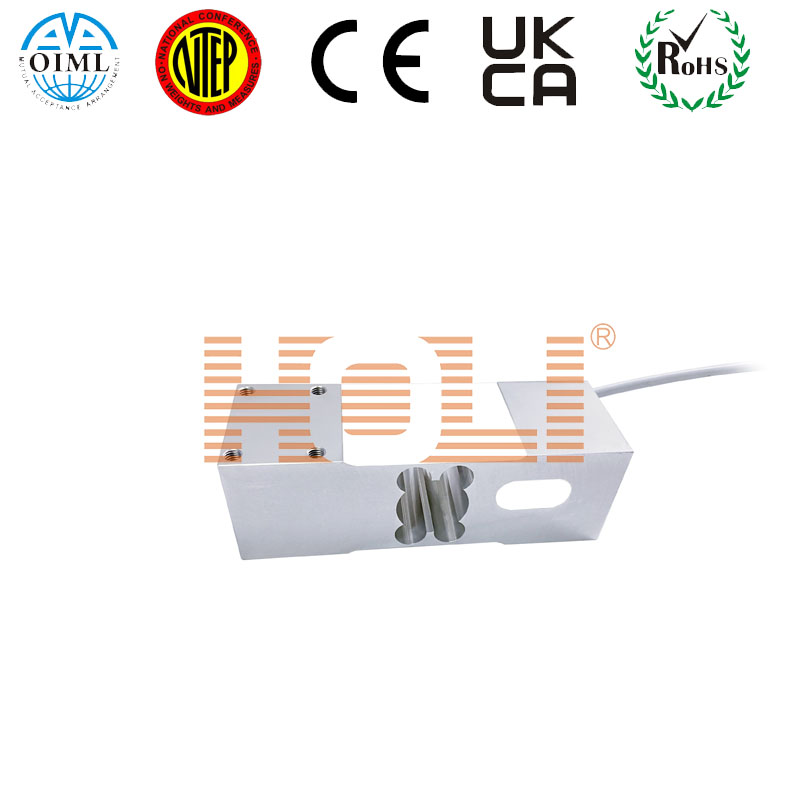

AL188
HOLI
CE, OIML, NTEP, RoHS
Availability: | |
---|---|
Quantity: | |
In the bustling realm of industrial weighing, there stands a product that encapsulates the perfect blend of design and efficiency: the AL188 load cell by HOLI Scale. Distinguished for its impeccable precision, and tailored to meet the demands of a dynamic industry, the AL188 offers an unrivaled experience.
Masterful Design with Aluminum
Crafted with high-grade aluminium, the AL188 promises durability and resilience. Its exquisite build not only ensures longevity but also guarantees consistent performance. This single-point aluminium load cell is a testament to HOLI Scale's unwavering commitment to quality.
Superior Weighing Capability
One of the standout features of the AL188 is its formidable weighing capacity. Designed to support loads up to 750kg, this load cell ensures precise measurements for a broad spectrum of industrial applications. From logistics to manufacturing, its versatile range makes it an indispensable tool for many.
Precision at its Best
Accuracy is paramount in weighing solutions, and the AL188 doesn't disappoint. Equipped with state-of-the-art technology, it delivers pinpoint precision, ensuring that every measurement stands up to the highest scrutiny.
Why Choose AL188?
In an industry saturated with weighing instruments, the AL188 rises above the crowd. With its unparalleled weighing capability, combined with its robust construction, it stands as a beacon of innovation, reflecting HOLI Scale's ethos of engineering excellence.
Conclusion
The AL188 load cell is not just a product; it's a promise. A promise of unwavering accuracy, a promise of enduring quality, and a commitment to facilitating the very best in industrial weighing. Those in pursuit of excellence needn't look any further.
Specifications | ||||||
Parameter | Value | Units | ||||
Rated capacity (Emax) | 50 / 75 / 100 / 150 / 200 / 250 / 300 / 500 / 750 | kg | ||||
Accuracy class | C3 | C3MR | C6 | |||
Maximum number of LC intervals (nmax) | 3000 | 2*3000 | 6000 | |||
Min. LC verification interval (vmin) | Emax/5000 | Emax/10000 | g | |||
Temp. effect on zero balance | ± 0.0028 | ± 0.0014 | % of Emax/℃ | |||
Zero balance | ± 0.1 | mV/V | ||||
Rated output | 2.0 | mV/V | ||||
Rated output tolerance | ± 0.2 | mV/V | ||||
Temp. effect on rated output +20…+40℃ | ± 0.00175 | ± 0.00175 | ± 0.00087 | % of AL/℃ | ||
-10…+20℃ | ± 0.00117 | ± 0.00117 | ± 0.00058 | |||
Hysteresis error | ± 0.0175 | ± 0.0175 | ± 0.0105 | % of Emax | ||
Non-linearity error | ± 0.0175 | ± 0.0175 | ± 0.0105 | % of Emax | ||
Min. dead load output return | ± 0.0166 | ± 0.0166 | ± 0.0083 | % of AL | ||
Offer center load error(OIML R76) | ± 0.0044 | ± 0.0044 | ± 0.0026 | % of AL/cm | ||
Terminal resistance | Excitation | 404 ± 15 | Ω | |||
Output | 350 ± 3 | Ω | ||||
Insulation resistance @50VDC | >2000 | MΩ | ||||
Excitation voltage | Recommended | 10 | V AC/DC | |||
Maximum | 15 | V AC/DC | ||||
Temperature range | Compensated | -10 to +40 | ℃ | |||
Operating | -10 to +50 | ℃ | ||||
Safe storage | -25 to +70 | ℃ | ||||
Load limit | Safe | 150 | % of Emax | |||
Ultimate | 300 | % of Emax | ||||
Protection | Type | Silicone rubber over gage | ||||
IP rating | IP65 | |||||
OIML / European Approval | OIML Cert. No. | R60-2017-A-NL1-22.23 | ||||
European Cert. No. | TC11565 | |||||
Class | C6 | |||||
nmax | 6000 | |||||
NTEP Approval | Cert. No. | 23-026 | ||||
Class | III | |||||
nmax | 6000 | |||||
Cable | Length | 2.5 | m | |||
Type | 4-wire, PVC | |||||
Diameter | Φ6 | |||||
Construction | Aluminum | |||||
Maximum platform size | 600 x 800 | mm | ||||
Recommended torque | up to 300kg: 25 / above 300kg: 30 | N.m | ||||
Notes: The values for linearity, hysteresis and temp. effect on rated output are recommended values, the sum of these data meets the requirements according to OIML R60. |
