C9P Plastic Junction Box

Voltage/Signal adjustable
  • C9P

  • Holi

  • CE, RoHS

Availability:
Quantity:

HOLI C9P Plastic Junction Box – Reliable, Weatherproof, and Built for Scales

The HOLI C9P Junction Box is designed to make connections between your scale parts simple and secure. With its durable plastic case and IP66 protection rating, it’s built to keep out dust and water – making it perfect for use in tough working environments.

This junction box features high-quality HUMMEL Connectors that offer excellent sealing and long-lasting performance. Whether indoors or outdoors, this box helps keep your weighing system running smoothly and safely.


Specifications:

  • Housing material: Plastic

  • IP rating: lP66

  • Max number of load cells: 8PCS

  • Trimming: Individual cell with excitation or signal trim

  • Connector: M16 plastic connectors

  • Install Dimension: 4-φ7mm

  • Mounting hole center: 138-143mm

  • Dimension: 210×167×68mm

  • Optional: HUMMEL Connectors


Choose the HOLI C9P Junction Box for a safe, simple, and long-lasting solution to your scale connection needs.

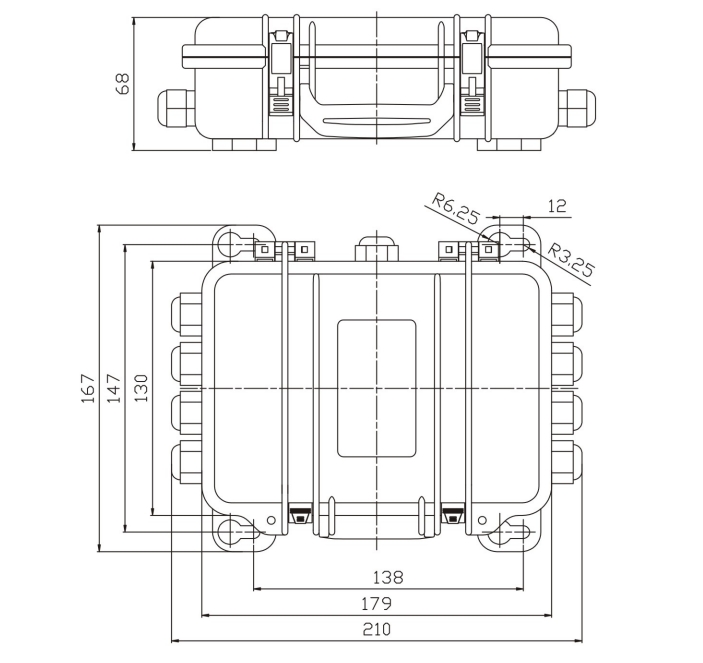

Dimension(mm):

C9P
