HOLI C7P Plastic Junction Box – Strong, Secure and Weather-Resistant
The HOLI C7P Junction Box is made for easy and safe connections between your scale parts. With a tough plastic case and IP66 rating, it offers strong protection against dust and water – ideal for both indoor and outdoor weighing systems.
This junction box features reliable HUMMEL Connectors, known for their durability and tight sealing. It’s perfect for use in harsh or wet environments, keeping your connections secure and your system running smoothly.
Specifications:
Housing material: Plastic
IP rating: lP66
Max number of load cells: 6PCS
Trimming: Individual cell with excitation or signal trim
Connector: M16 plastic connectors
Install Dimension: 4-φ7mm
Mounting hole center: 138-143mm

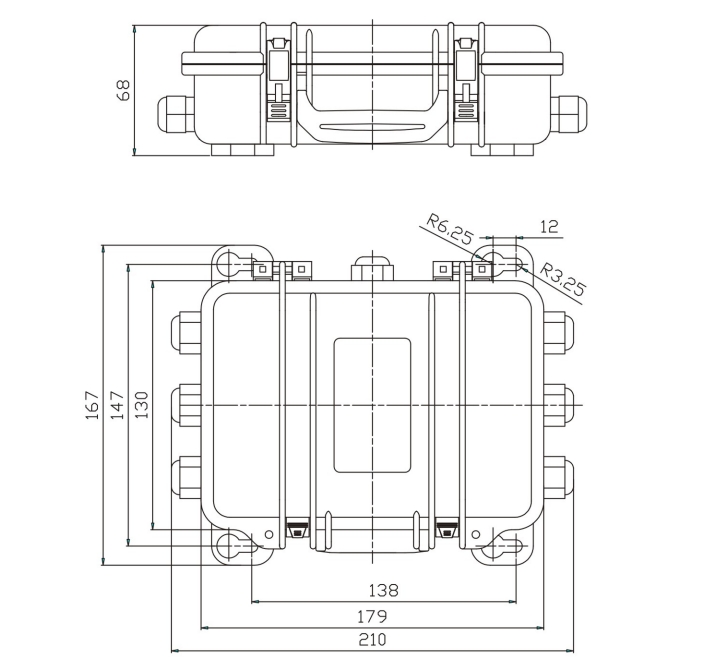

Dimension: 210×167×68mm
Optional: HUMMEL Connectors
Choose the HOLI C7P Junction Box for a smart, strong and safe wiring solution that works wherever you need it.
