B5-IP68 Stainless Steel Junction Box

Voltage/Signal adjustable
  • B5-IP68

  • Holi

  • CE, RoHS

Availability:
Quantity:

HOLI B5 IP68 Stainless Steel Junction Box – Built for Tough Jobs with Full Protection

The HOLI B5 IP68 Junction Box is a heavy-duty solution for keeping your scale parts safe and secure in all conditions. With a strong stainless steel case and top-level IP68 rating, it gives maximum protection against dust, water, and harsh environments.

Designed for safety, this junction box is available in Explosion-proof and Lightning Protection models, making it ideal for demanding or risky work areas. Whether you're working indoors or out, this box is made to last and easy to install.


Specifications:

  • Housing material: Stainless steel

  • IP rating: lP6

  • Max number of load cells: 4PCS

  • Trimming: Individual cell with excitation or signal trim

  • Connector: M12 metal connectors

  • Installation size: 4-φ7mm

  • Mounting hole center: 35-168mm

  • Dimension: 192×124×43mm

  • Optional: Explosion-proof model/ Lightning Protection model


For professionals who need dependable protection and strength, the HOLI B5 IP68 Junction Box is the ideal choice.

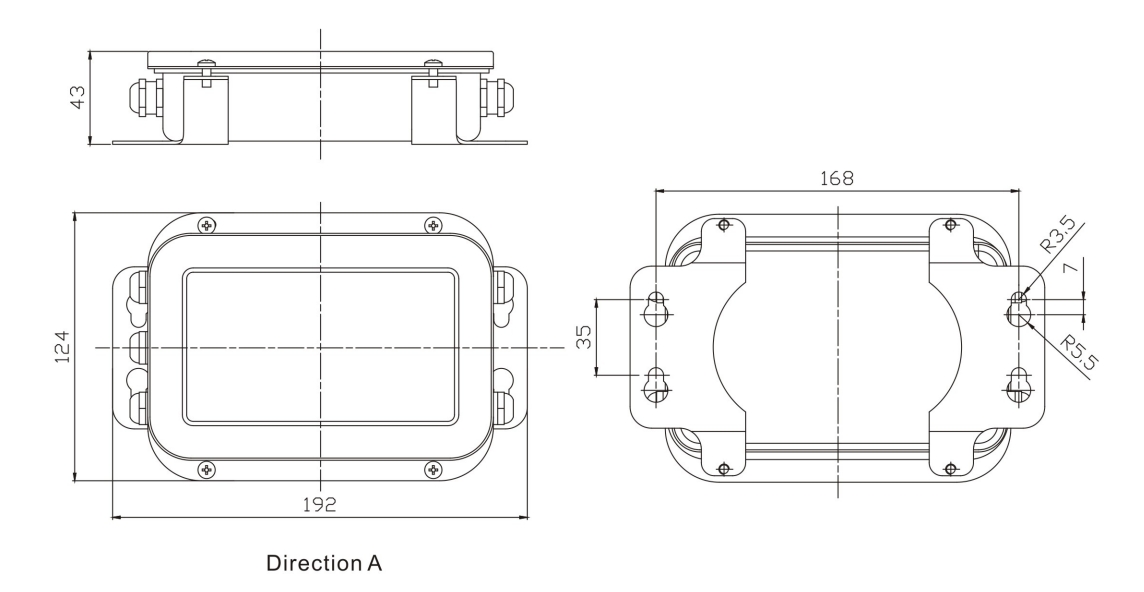

Dimension(mm):

B5-IP68
