C5 Stainless Steel Junction Box

Specifications:

• Housing material: Stainless steel

• IP rating: lP65

• Max number of load cells: 4PCS

• Trimming: Individual cell with excitation or signal trim

• Connector: M16 plastic connectors

• Install Dimension: 4-φ7mm

• Mounting hole center: 138-143mm

• Dimension: 208×153×48mm

• Optional: Explosion-proof model/ Lightning Protection model/HUMMEL Connectors

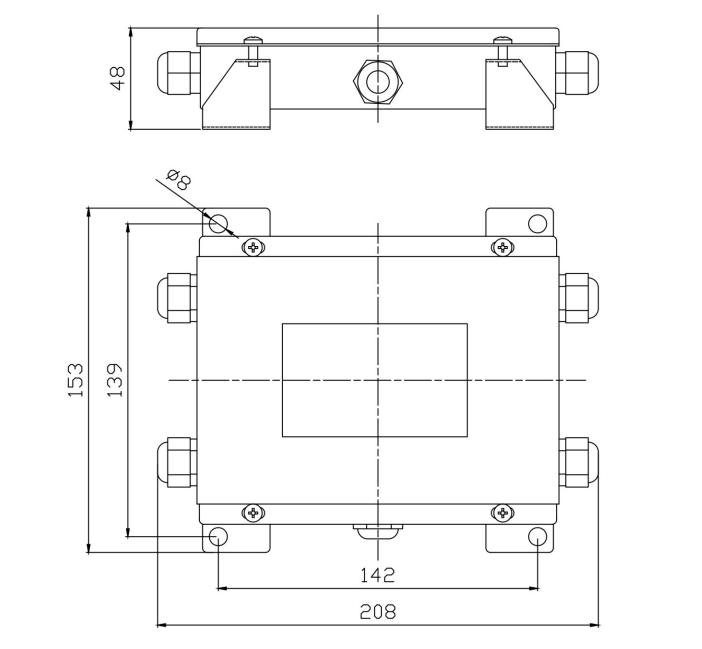

Dimension(mm):
