A5P-IP68 Plastic Junction Box

IP68 certificate number: 2017NT07104810
Voltage/Signal adjustable
  • A5P-IP68

  • Holi

  • CE

Availability:
Quantity:

HOLI A5P-IP68 Plastic Junction Box – Tough, Sealed and Surge-Protected

The HOLI A5P-IP68 Junction Box is specially made for connecting scale parts in all kinds of environments, including wet, dusty or outdoor locations. With a high-grade plastic case and IP68 rating, this box is completely sealed from water and dirt – ideal for long-term use in harsh conditions.

It comes with a Lightning Protection model to help keep your system safe during storms or power spikes, making it perfect for industrial weighing systems and electrical connections.

Specifications:

  • Housing material: Plastic

  • IP rating: lP68

  • Max number of load cells: 4PCS

  • Trimming: Individual cell with excitation or signal trim

  • Connector: M12 plastic connectors

  • Install Dimension: 4-φ7mmφ

  • Mounting hole center: 155-160mm

  • Dimension: 179×68×40mm

  • Optional: Lightning Protection model


The HOLI A5P-IP68 Junction Box is your go-to choice for secure, weatherproof and surge-protected connections – built to last, indoors or out.

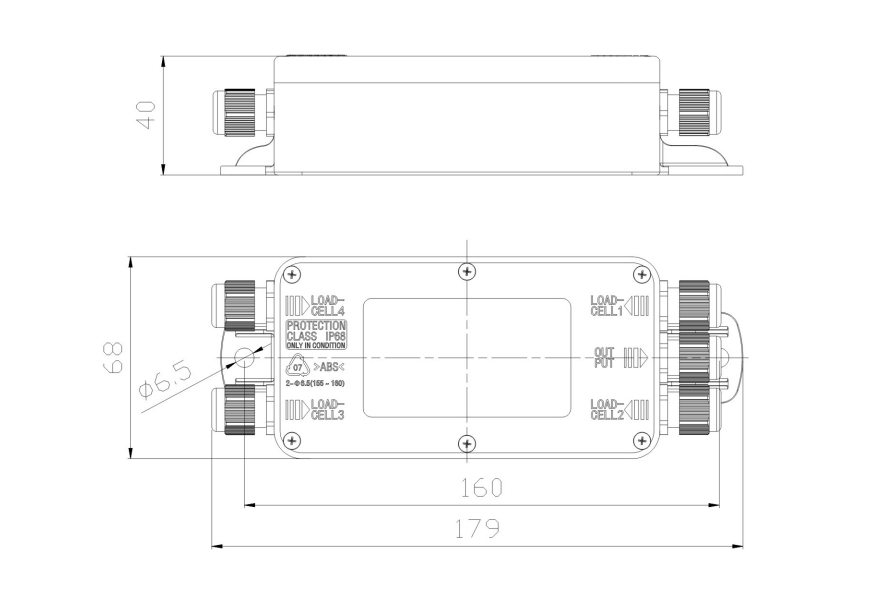

Dimensions(mm):

A5P-IP68
