HOLI C7 Stainless Steel Junction Box – Strong Protection for Scale Parts in Any Setting

The HOLI C7 Junction Box is a solid and dependable choice for connecting and protecting your scale parts. It comes in a strong stainless steel case and is rated IP65, which means it keeps out dust and low-pressure water – perfect for both indoor and outdoor use.

This junction box is built for safety, with options for Explosion-proof and Lightning Protection models. It also uses top-quality HUMMEL connectors for secure, lasting connections. Whether in a factory, warehouse, or field site, this box is made to perform in tough conditions.

Specifications:

• Housing material: Stainless steel

• IP rating: lP65

• Max number of load cells: 6PCS

• Trimming: Individual cell with excitation or signal trim

• Connector: M16 plastic connectors

• Install Dimension: 4-φ7mm

• Mounting hole center: 138-143mm

• Dimension: 208×153×48mm

• Optional: Explosion-proof model/ Lightning Protection model/HUMMEL Connectors

Trust the HOLI C7 Stainless Steel Junction Box for high performance, safe connections, and long-term reliability.

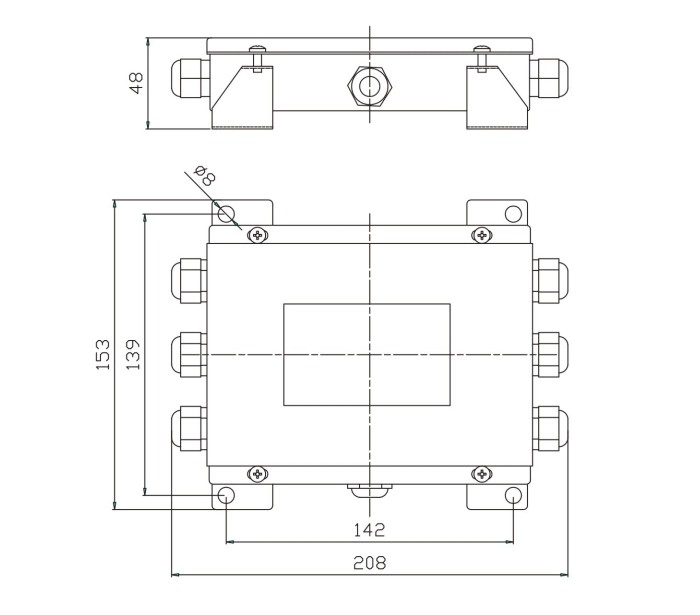

Dimension(mm):
