HOLI C5 Stainless Steel Junction Box – Reliable IP65 Protection for Your Scale Parts

The HOLI C5 Junction Box is a sturdy and practical choice for anyone needing a strong and safe connection for their scale parts. Made with a solid stainless steel case and rated IP65, it protects against dust, dirt, and water – making it ideal for tough working conditions.

This junction box is available in Explosion-proof and Lightning Protection models, giving extra safety in risky or outdoor areas. It also features top-quality HUMMEL connectors, known for their secure and long-lasting performance.

Specifications:

• Housing material: Stainless steel

• IP rating: lP65

• Max number of load cells: 4PCS

• Trimming: Individual cell with excitation or signal trim

• Connector: M16 plastic connectors

• Install Dimension: 4-φ7mm

• Mounting hole center: 138-143mm

• Dimension: 208×153×48mm

• Optional: Explosion-proof model/ Lightning Protection model/HUMMEL Connectors

Choose the HOLI C5 Junction Box when you need strong protection, easy setup, and reliable connections in your weighing system.

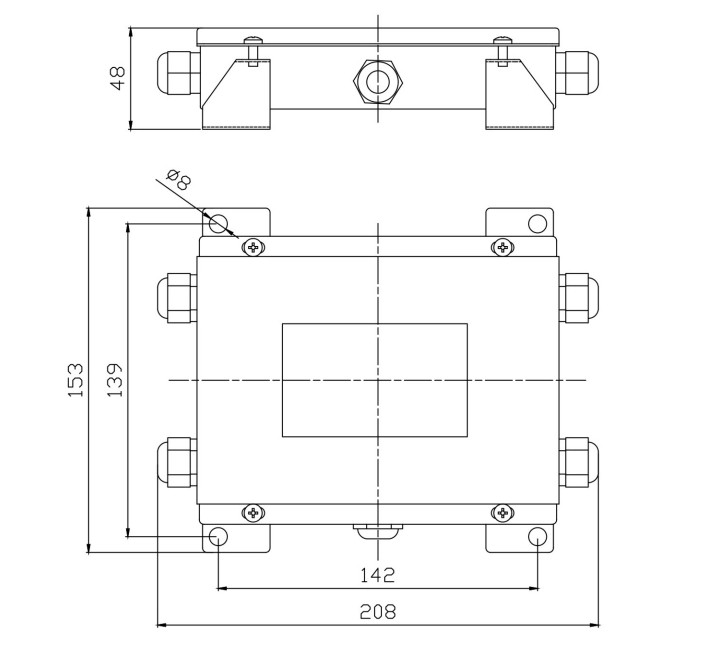

Dimension(mm):
