HOLI A5-1 Stainless Steel Junction Box – Safe, Strong, and Built to Protect

The HOLI A5-1 Junction Box is a high-quality solution for connecting scale parts safely and reliably. Built with a solid stainless steel case, this box offers excellent protection against dust and water with its IP65 rating, making it ideal for industrial and outdoor use.

This model includes both Explosion-proof and Lightning Protection features to keep your equipment safe in challenging environments. Whether used in factories, labs, or field settings, it delivers lasting performance and security.

Specifications:

• Housing material: Stainless steel

• IP rating: lP65

• Max number of load cells: 4PCS

• Trimming: Individual cell with excitation or signal trim

• Connector: M12 plastic connectors

• Install Dimension: 2-φ7mm

• Mounting hole center: 150-155mm

• Dimension: 174×60×48mm

• Optional: Explosion-proof model/ Lightning Protection model/HUMMEL Connectors

Choose the HOLI A5-1 Junction Box for a rugged, secure, and dependable connection – especially when safety and durability matter most.

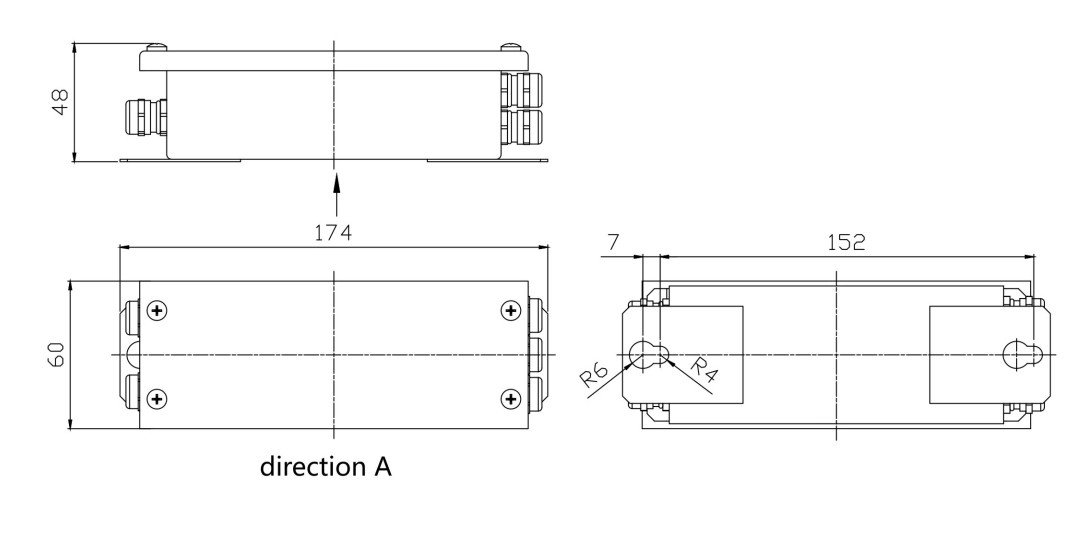

Dimension(mm):
