HOLI B5 Stainless Steel Junction Box – IP65 with Lightning & Explosion Protection

The HOLI B5 Junction Box is a tough and reliable solution for protecting your scale parts. Made with a strong stainless steel case and rated IP65, it keeps out dust and water – perfect for both indoor and outdoor weighing systems.

This junction box is built for safety and performance. It’s available in both Explosion-proof and Lightning Protection models, giving you extra peace of mind in demanding environments. The box also features HUMMEL connectors, known for their secure and long-lasting cable connections.

Specifications:

• Housing material: Stainless steel

• IP rating: lP65

• Max number of load cells: 4PCS

• Trimming: Individual cell with excitation or signal trim

• Connector: M12 plastic connectors

• Install Dimension: 4-φ7mm

• Mounting hole center: 20mm×160-165mm

• Dimension: 175×91×42mm

• Optional: Explosion-proof model/ Lightning Protection model/HUMMEL Connectors

Whether you're replacing an old box or setting up new equipment, the HOLI B5 Junction Box is built to last and easy to install.

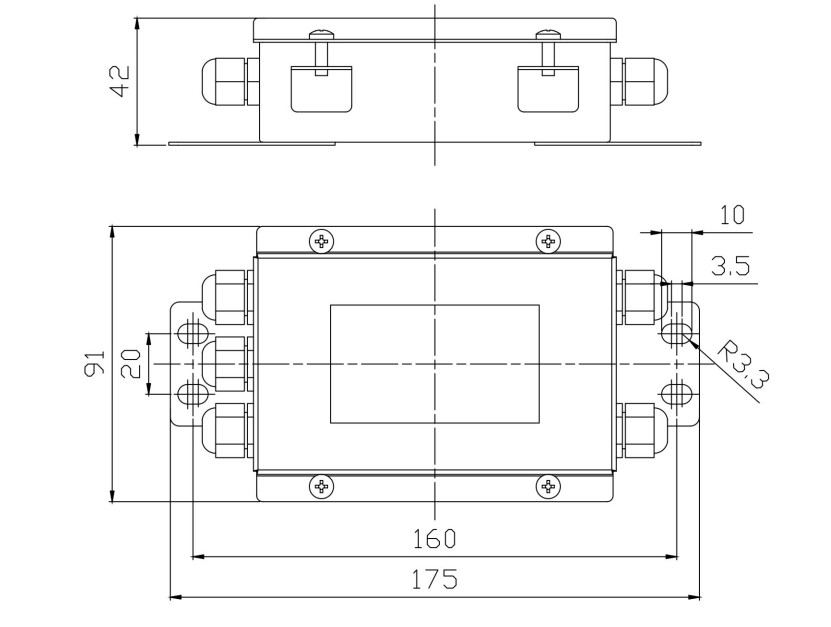

Dimension(mm):
