HOLI C9 Stainless Steel Junction Box – Heavy-duty Protection for Scale Parts

The HOLI C9 Junction Box is a tough and reliable solution for your scale parts. Built with a strong stainless steel case, it provides excellent protection against dust and water with an IP65 rating. This makes it ideal for harsh environments, both indoors and out.

Designed with safety in mind, this junction box is available as an Explosion-proof model and comes with a Lightning Protection model option to guard against electrical surges. It also features trusted HUMMEL connectors for stable, secure connections.

Whether for industrial scales or outdoor systems, the HOLI C9 is built to last and protect.

Specifications:

• Housing material: Stainless steel

• IP rating: lP65

• Max number of load cells: 8PCS

• Trimming: Individual cell with excitation or signal trim

• Connector: M16 plastic connectors

• Install Dimension: 4-φ7mm

• Mounting hole center: 138-143mm

• Dimension: 208×153×48mm

• Optional: Explosion-proof model/ Lightning Protection model/HUMMEL Connectors

Choose the HOLI C9 Stainless Steel Junction Box for lasting protection and dependable performance in any condition.

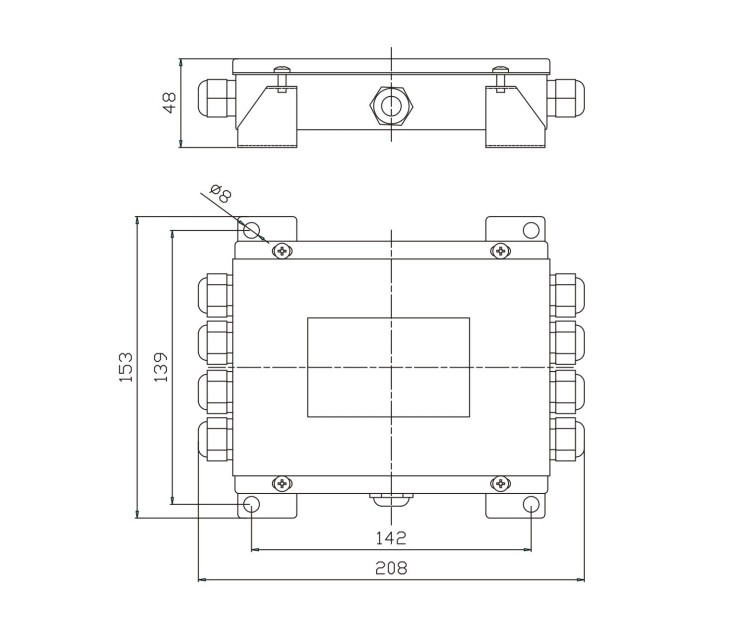

Dimension(mm):
