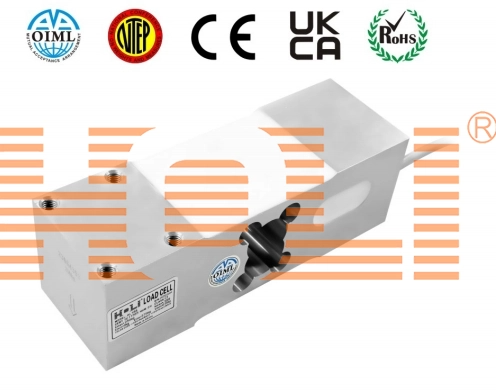

AL188 - HOLI Scale's AL188 Single Point Load Cell: Precision Meets Advanced Engineering
Dive into the world of precision with HOLI Scale's AL188 load cell, boasting a remarkable 1000kg weighing capability. Constructed with premium aluminium and featuring cutting-edge technology, the AL188 emerges as a pinnacle in advanced industrial weighing solutions. Choose excellence. Choose AL188.
Model:AL188
Brand:HOLI
Certificates:CE, OIML, NTEP, RoHS
Request a Quote

Files & Downloads

Share

Product Description

Capacity: 50kg to 1000kg

The AL188 load cell from HOLI Scale is a high-precision, single point load cell certified by OIML and NTEP. In the bustling realm of industrial weighing, there stands a product that encapsulates the perfect blend of design and efficiency: the AL188 load cell by HOLI Scale. Distinguished for its impeccable precision, and tailored to meet the demands of a dynamic industry, the AL188 offers an unrivaled experience.


Key Features:

  • Built with high-quality aluminium alloy steel

  • Anodized surface for extra protection and a sleek look

  • Officially OIML Approved and NTEP Approved

  • Reliable for different weighing setups and scale parts

  • Delivers accurate results over time


If you're looking for a solid, dependable single point load cell that's easy to install and built to last, the AL188 is a great choice. It's simple, smart, and ready to perform.

ModelProducts Description
AL 188-50kgOIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 188-100kg

OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.

AL 188-150kg

OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.

AL 188-200kg

OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.

AL 188-250kg

OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.

AL 188-300kgOIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 188-500kg

OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.

AL 188-750kg

OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.

AL 188-1000kg

OIML, aluminium alloy steel, 2.5m wire with 4 or 6 cores.

AL 188-165lbNTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 188-220lbNTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 188-330lbNTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 188-440lbNTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 188-660lbNTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.
AL 188-1100lbNTEP, aluminium alloy steel, 2.5m wire with 4 or 6 cores.


Product dimensions(mm):

AL188 - HOLI Scale's AL188 Single Point Load Cell: Precision Meets Advanced Engineering

Aluminium Single-Point Load Cell AL188
ParameterSpecificationsUnits
Rated capacity (Emax)50/ 100/ 150/ 200/ 250/ 300/ 500/ 750/ 1000kg
165/ 220/ 330/ 440/ 660/ 1100lb
Accuracy classC3C3MRC5C6
Maximum number of LC intervals (Nmax)30002*300050006000
Min. LC verification interval (Vmin)Emax / 5000Emax / 10000g
Zero balance±0.1mV/V
Min.dead load
0
kg
Rated output2.0mV/V
Rated output tolerance± 0.2mV/V
Pepeatability± 0.010± 0.010± 0.006± 0.005% of AL*
Creep 30 minute
± 0.017± 0.017± 0.0010± 0.0083% of AL
Temp. effect on rated output  +20...+40℃± 0.00175± 0.00175± 0.00105± 0.00087% of Emax/℃
-10...+20℃± 0.00117± 0.00117± 0.0007± 0.00058% of AL/℃
Temp. effect on zero balance± 0.0028± 0.0014% of Emax/℃
Hysteresis error± 0.0175± 0.0175± 0.0105± 0.0105% of Emax
Non-linearity error± 0.0175± 0.0175± 0.0105± 0.0105% of Emax
Min. dead load output return± 0.0166± 0.0166± 0.0100± 0.0083% of AL
Offer center load error (OIML R76)
± 0.0044± 0.0044± 0.0026± 0.0022% of AL/cm
Input resistance404± 15Ω
Output resistance350 ± 3Ω
Insulation resistance @50VDC>5000
Excitation voltageRecommended10V AC/DC
Maximum15V AC/DC
Temperature rangeCompensated-10 to +40
Operating-10 to +50
Safe storage-25 to +70
Load limitSafe150% of Emax
Ultimate300% of Emax
ProtectionType

Silicone rubber over gage


IP ratingIP65
OIML / European ApprovalOIML Cert. No.R60/2017-A-NL1-21.23

European Cert. No.TC11565

ClassC6
nmax6000
NTEP ApprovalCert. No.23-026
Class
nmax6000
CableLength2.5m
Type4 or 6 cores, PVC
ConstructionAluminium
Maximum platform size600×800mm
Recommended torque

50kg to 300kg: 25.0/ above 300kg: 30.0

N.m
Notes: The values for linearity, hysteresis and temp. effect on rated output are recommended values, the sum of these data meets the requirements according to OIML R60.

*AL: Applied load.
