Product Description:

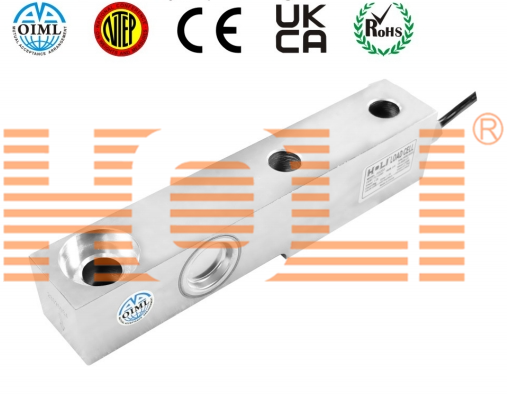

The SS203 is a shear beam load cell with high accuracy and a hermetically sealed design to ensure it performs well in harsh industrial environments. It enriches HOLI's product line in platform scales, process weighing and other large format industrial equipment.
Key Features:
Made from durable stainless steel for long-lasting performance
Clean electrolytic polishing surface for added protection and a sleek look
Trusted shear beam load cell design for consistent and stable readings
Certified as OIML Approved and NTEP Approved for global compliance
Perfect addition to many types of scale parts and weighing systems
Choose the SS203 for a reliable, clean, and accurate load cell that’s built to perform under pressure.

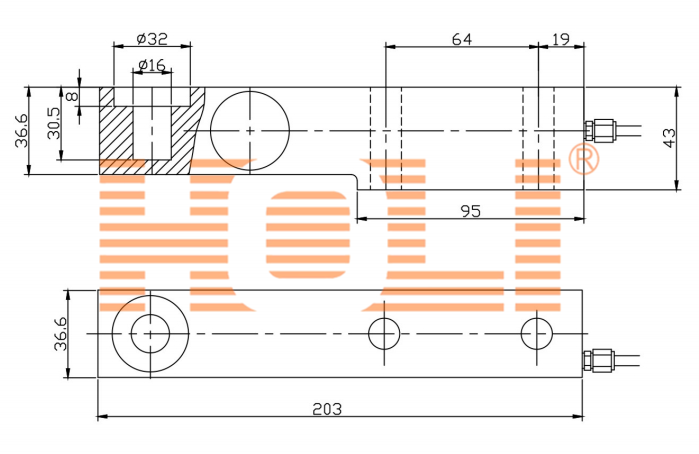

| Model | Products Description |
| SS 203-500kg | OIML, stainless steel electrolytic polishing, 3m wire with 4 or 6 cores. |
| SS 203-1000kg | OIML, stainless steel electrolytic polishing, 3m wire with 4 or 6 cores. |
| SS 203-1500kg | OIML, stainless steel electrolytic polishing, 3m wire with 4 or 6 cores. |
| SS 203-2000kg | OIML, stainless steel electrolytic polishing, 3m wire with 4 or 6 cores. |
| SS 203-1000lb | NTEP, stainless steel electrolytic polishing, 3m wire with 4 or 6 cores. |
| SS 203-1500lb | NTEP, stainless steel electrolytic polishing, 3m wire with 4 or 6 cores. |
SS 203-2000lb | NTEP, stainless steel electrolytic polishing, 3m wire with 4 or 6 cores. |
| SS 203-2500lb | NTEP, stainless steel electrolytic polishing, 3m wire with 4 or 6 cores. |
| SS 203-3000lb | NTEP, stainless steel electrolytic polishing, 3m wire with 4 or 6 cores. |
| SS 203-4000lb | NTEP, stainless steel electrolytic polishing, 3m wire with 4 or 6 cores. |
| SS 203-5000lb | NTEP, stainless steel electrolytic polishing, 3m wire with 4 or 6 cores. |
Shear Beam Load Cell SS 203 | |||||||
| Parameter | Specifications | Units | |||||
| Rated capacity (Emax) | 500 / 1000 / 1500 / 2000 | kg | |||||
| 500/1000 / 1500 / 2000 / 2500 / 3000 / 4000 / 5000 | lb | ||||||
| Accuracy class | C3 | C4 | C5 | C6 | |||
| Maximum number of LC intervals (Nmax) | 3000 | 4000 | 5000 | 6000 | |||
| Min. LC verification interval (Vmin) | Emax / 5000 | Emax / 10000 | kg | ||||
| Zero balance | ± 1.0 | % of Emax | |||||
| Min.dead load | 0 | kg | |||||
| Rated output | 2.0 / 3.0 | mV/V | |||||
| Rated output tolerance | ± 0.1 | % of Emax | |||||
| Pepeatability | ± 0.010 | ± 0.006 | ± 0.006 | ± 0.005 | % of AL* | ||
| Creep 30 minute | ± 0.017 | ± 0.017 | ± 0.0010 | ± 0.0083 | % of AL | ||
| Temp. effect on rated output +20...+40℃ | ± 0.00175 | ± 0.0013 | ± 0.00105 | ± 0.00087 | % of AL/℃ | ||
| -10...+20℃ | ± 0.00117 | ± 0.0009 | ± 0.0007 | ± 0.00058 | |||
| Temp. effect on zero balance | ±0.0028 | ±0.0014 | % of Emax/℃ | ||||
| Hysteresis error | ± 0.0175 | ± 0.0131 | ± 0.0105 | ± 0.0105 | % of Emax | ||
| Non-linearity error | ± 0.0175 | ± 0.0131 | ± 0.0105 | ± 0.0105 | % of Emax | ||
| Min. dead load output return | ± 0.0166 | ± 0.0125 | ± 0.01 | ± 0.0022 | % of AL | ||
| Excitation resistance | 350 ± 10 | Ω | |||||
| Output resistance | 350 ± 3 | Ω | |||||
| Insulation resistance @50VDC | ＞5000 | MΩ | |||||
| Excitation voltage | Recommended | 10 | V AC/DC | ||||
| Maximum | 15 | V AC/DC | |||||
| Temperature range | Compensated | -10 to +40 | ℃ | ||||
| Operating | -30 to +65 | ℃ | |||||
| Safe storage | -40 to +80 | ℃ | |||||
| Load limit | Safe | 150 | % of Emax | ||||
| Ultimate | 300 | % of Emax | |||||
| Protection | Type | Hermetically welded | |||||
| IP rating | IP68 | ||||||
| OIML / European Approval | OIML Cert. No. | R60-2017-A-NL1-22.04 | |||||
| European Cert. No. | TC12252 | ||||||
| Class | C6 | ||||||
| nmax | 6000 | ||||||
| NTEP Approval | Cert. No. | 23-057 | |||||
| Class | Ⅲ single cell and Class III L, Multiple cell | ||||||
| nmax | 6000 | ||||||
| Cable | Length | 3 | m | ||||
| Type | 4 or 6 cores, PVC | ||||||
| Construction | Alloy steel | ||||||
| Recommended torque | 98 | N.m | |||||
| Notes: The values for linearity, hysteresis and temp. effect on rated output are recommended values, the sum of these data meets the requirements according to OIML R60. *AL: Applied load. | |||||||
