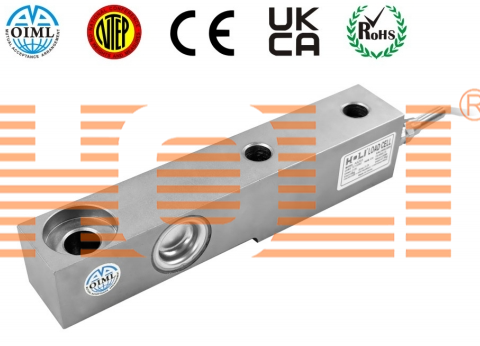

The AS203 is a shear beam load cell with high accuracy and a hermetically sealed design to ensure it performs well in harsh industrial environments. It enriches HOLI's product line in platform scales, process weighing and other large format industrial equipment.

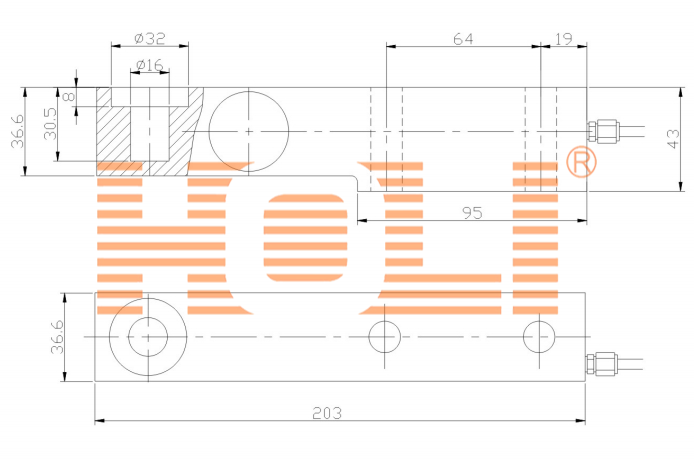

| Model | Products Description |
| AS 203-500kg | OIML, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 203-1000kg | OIML, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 203-1500kg | OIML, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 203-2000kg | OIML, alloy steel, nickel plated, 3m wire with 4 or 6 cores |
| AS 203-1000lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 203-1500lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
AS 203-2000lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 203-2500lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 203-3000lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 203-4000lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 203-5000lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
Shear Beam Load Cell AS 203 | ||||||
| Parameter | Specifications | Units | ||||
| Rated capacity (Emax) | 500 / 1000 / 1500 / 2000 | kg | ||||
| 1000 / 1500 / 2000 / 2500 / 3000 / 4000 / 5000 | lb | |||||
| Accuracy class | C3 | C4 | C5 | |||
| Maximum number of LC intervals (Nmax) | 3000 | 4000 | 5000 | |||
| Min. LC verification interval (Vmin) | Emax / 5000 | Emax / 10000 | kg | |||
| Zero balance | ± 1.0 | % of Emax | ||||
| Min.dead load | 0 | kg | ||||
| Rated output | 2.0 / 3.0 | mV/V | ||||
| Rated output tolerance | ± 0.1 | % of Emax | ||||
| Pepeatability | ± 0.010 | ± 0.006 | ± 0.006 | % of AL* | ||
| Creep 30 minute | ± 0.017 | ± 0.012 | ± 0.0010 | % of AL | ||
| Temp. effect on rated output +20...+40℃ | ± 0.00175 | ± 0.0013 | ± 0.00105 | % of AL/℃ | ||
| -10...+20℃ | ± 0.00117 | ± 0.0009 | ± 0.0007 | |||
| Temp. effect on zero balance | ±0.0028 | ±0.0014 | % of Emax/℃ | |||
| Hysteresis error | ± 0.0175 | ± 0.0131 | ± 0.0105 | % of Emax | ||
| Non-linearity error | ± 0.0175 | ± 0.0131 | ± 0.0105 | % of Emax | ||
| Min. dead load output return | ± 0.0166 | ± 0.0125 | ± 0.01 | % of AL | ||
| Excitation resistance | 350 ± 10 | Ω | ||||
| Output resistance | 350 ± 3 | Ω | ||||
| Insulation resistance @50VDC | ＞5000 | MΩ | ||||
| Excitation voltage | Recommended | 10 | V AC/DC | |||
| Maximum | 15 | V AC/DC | ||||
| Temperature range | Compensated | -10 to +40 | ℃ | |||
| Operating | -30 to +65 | ℃ | ||||
| Safe storage | -40 to +80 | ℃ | ||||
| Load limit | Safe | 150 | % of Emax | |||
| Ultimate | 300 | % of Emax | ||||
| Protection | Type | Hermetically welded | ||||
| IP rating | IP67 | |||||
| OIML / European Approval | OIML Cert. No. | R60-2017-A-NL1-22.04 | R60-2017-A-NL1-20-28 | |||
| European Cert. No. | TC12252 | TC10977 | ||||
| Class | C5 | |||||
| nmax | 5000 | |||||
| NTEP Approval | Cert. No. | 23-057 | ||||
| Class | Ⅲ single cell and Class III L, Multiple cell | |||||
| nmax | 4000 | |||||
| Cable | Length | 3 | m | |||
| Type | 4 or 6 cores, PVC | |||||
| Construction | Alloy steel | |||||
| Recommended torque | 98 | N.m | ||||
Notes: The values for linearity, hysteresis and temp. effect on rated output are recommended values, the sum of these data meets the requirements according to OIML R60. *AL: Applied load. | ||||||
