PAW-C-1

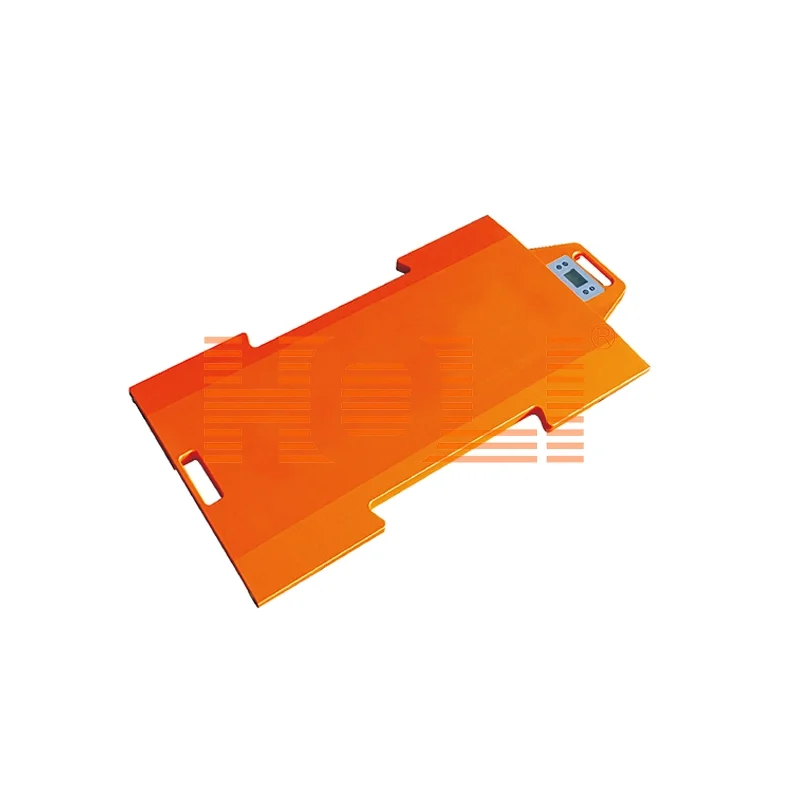

Portable Axle Weighing Scale
PAW-C-1
Model:PAW-C-1
Brand:Holi
Certificates:CE
Request a Quote

Files & Downloads

Share

Product Description

Wheel Weigher

PAW-C-1 Portable Wheel Scale is a highly accurate weighing solution designed for the measurement of heavy-duty vehicles, such as trucks, trailers, and other large commercial vehicles. With its compact and lightweight design, this scale system is perfect for use in a variety of applications, including construction sites, mining operations, and transportation hubs.


HOLI PAW-C-1 Portable Axle Weighing Scale – Lightweight Platform Scale for Static Weighing

The HOLI PAW-C-1 Portable Axle Weighing Scale is a smart, flexible weighing scale designed for fast and easy static weighing of vehicle axles. Compact, lightweight, and easy to carry, this platform scale is ideal for mobile weighing operations and on-the-go load checks.

Made from high-strength materials and equipped with a clear digital display, the PAW-C-1 delivers accurate axle weight readings wherever you need them. Whether you’re working at transport checkpoints, temporary job sites, or field locations, this portable axle weighing scale is your go-to weighing solution.


Features:

* Durable aluminium construction.

* Seal protection for normal working environment.

* Lightweight aluminium construction with handle for easy transportation.

* Easy-to-use operation, with live weight reading.

* Durability, reliability and repeatable accuracy.

* Rubber ramps for easy truck/tire access.

* Built-in digital display.

* Backlit display.

* Powered by AAA alkaline high capacity batteries.

Perfect for fleet operators, enforcement teams, and logistics providers, the HOLI PAW-C-1 gives you accurate results on the move. This portable platform scale is a practical and cost-effective solution to help ensure safe, compliant vehicle loads.


Static Weighing:

Weighs the wheels of the vehicle, each wheel with a weighing pad. Consisting of 2, 4, 6, 8 or even more weighing pads.


Weighing Pad Specifications

Functional Area Dimension(mm)

500(W)×400(L)

19.7"(W)×15.7"(L)

800(W)×450(L)

31.5"(W)×17.7"(L)

900(W)×500(L)

35.4"(W)×19.7"(L)

Overall Dimension(mm)

600(W)×810(L)×42(H)

23.6"(W)×31.9"(L)×1.7"(H)

900(W)×1060(L)×42(H)

35.5"(W)×41.7"(L)×1.7"(H)

1000(W)×1110(L)×42(H)

39.4"(W)×43.7"(L)×1.7"(H)

Rubber Ramp Dimension(mm)

500(W)×205(L)

19.7"(W)×8.1"(L)

800(W)×305(L)

31.5"(W)×12"(L)

900(W)×305(L)

35.4"(W)×12"(L)

Weighing Capacity

≤10t(20,000Ib)

≤15t(30,000lb)≤15t(30,000lb)         ≤20t(40,000lb)
One Weighing Pad Weight20.5kg30kg34.5kg                      44kg

Two Rubber Ramps Weight

4.4kg19.5kg24.8kg                      24.8kg
Load Cell Quantity4pcs6pcs6pcs                         8pcs
Overload Protection120%
120%120%                       120%
Single Scale Static Accuracy

≤±0.3%

≤±0.3%

≤±0.3%                   ≤±0.3%
Sensitive Influence by Temperature

0.1%/10℃

0.1%/10℃

0.1%/10℃               0.1%/10℃
Repeatability

≤0.01%FS

≤0.01%FS

≤0.01%FS               ≤0.01%FS

Operation Temperature

-10~+65℃

-10~+65℃             -10~+65℃

-10~+65℃             -10~+65℃
Working Time

≤35 Hours

≤30 Hours

≤30 Hours              ≤20 Hours

Direct Display


LCD with Backlight,Function:On/Off.Lb/kg.Zero.
