Product Description:
The HL6F-D load cellfrom HOLI Scale is a high-precision, single pointload cell. Precision and performance in the world of weighing instruments have a new name: the HL6F-D load cell by HOLI Scale. As industries constantly seek to push the envelope, the HL6F-D stands as an epitome of advanced weighing engineering, setting itself apart even from its commendable counterpart.

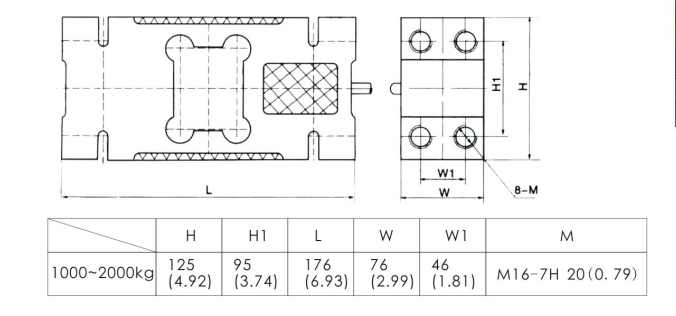

Production Dimensions(mm):
| Model | Products Description |
| HL6F-Z-1000kg-C3 | Aluminium Alloy steel, C3, 2.5m cable, 4 wires. |
| HL6F-Z-2000kg-C3 | Aluminium Alloy steel, C3, 2.5m cable, 4 wires. |
| Qualification |
| Load Rating | Kg | 1000/2000
|
| Precision |
| C3 |
| Maximum Division | Nmax | 3000 |
| Minimum Division | Vmin | Emax/7000 |
| Composition Error | (%FS) | ≤±0.020 |
| Creep Deformation | (%FS/30min) | ≤±0.0167 |
| The influence of temperature on the output sensitivity | (%FS/10℃) | ≤±0.0175 |
| The influence of temperature on the zero output | (%FS/10℃) | ≤±0.020 |
| Rated Output | (MV/V) | 2.0±0.2
|
| Input impedance | (Ω) | 406±6 |
| Output impedance | (Ω) | 350±3 |
| Insulation Resistance | (MΩ) | ≥5000(50VDC) |
| Zero output | (%FS) | 2 |
| Temperature compensation range | (℃) | -10~+40 |
| Working temperature range | (℃) | -35~+65 |
| Recommend excitation voltage | (V) | 5~12(DC) |
| Maximum excitation voltage | (V) | 18(DC) |
| Safety overload range | (%FS) | 150 |
Limit overload range
| (%FS) | 300 |
| Position Error |
| 0.02%/100mm |
