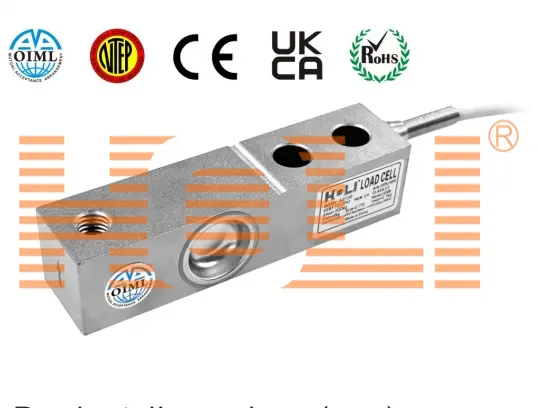

TheAS130S is a shear beam load cell designed by HOLI for precise weight measurement in various industrial applications.
Made from nickel-plated alloy steel, which provides excellent durability and resistance to environmental factors. Its low-profile and step type construction allow easy adaptation to different industrial weighing cases. It also is applied to portable axle weighing scales case by HOLI.
Key Features:
Made from strong alloy steel, nickel plated for added durability
Accurate and stable shear beam load cell design
Fully OIML approved and NTEP approved for trusted use worldwide
Perfect for a wide range of scale parts and weighing setups
Easy to install, reliable, and long-lasting
This load cell offers great value, long life, and trusted performance in all types of weighing applications. Choose the AS130S shear beam load cell for a simple and effective solution to your scale needs.
| Model | Products Description |
| AS 130S-500kg | OIML, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 130S-1000kg | OIML, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 130S-1500kg | OIML, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 130S-2000kg | OIML, alloy steel, nickel plated, 3m wire with 4 or 6 cores |
| AS 130S-1000lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 130S-1500lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
AS 130S-2000lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 130S-2500lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 130S-3000lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 130S-4000lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |
| AS 130S-5000lb | NTEP, alloy steel, nickel plated, 3m wire with 4 or 6 cores. |

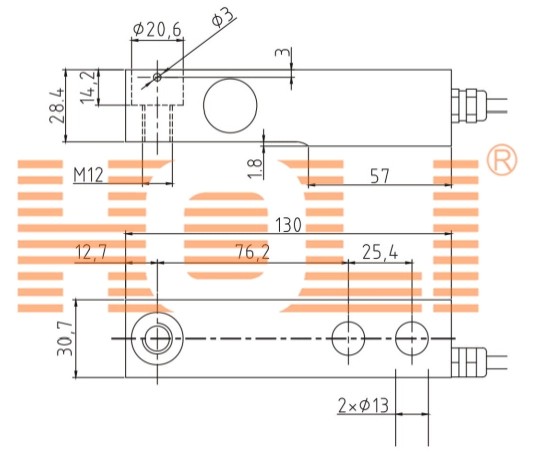

Product dimensions(mm):
| Shear Beam Load Cell AS 130S |
| Parameter | Specifications | Units |
| Rated capacity (Emax) | 500 / 1000 / 1500 / 2000 | kg |
| 1000 / 1500 / 2000 / 2500 / 3000 / 4000 / 5000 | lb |
| Accuracy class | C3 | C4 | C5 |
|
| Maximum number of LC intervals (Nmax) | 3000 | 4000 | 5000 |
|
| Min. LC verification interval (Vmin) | Emax / 5000 | Emax / 10000 | kg |
| Zero balance | ± 1.0 | % of Emax |
Min.dead load
| 0
| kg |
| Rated output | 2.0 / 3.0 | mV/V |
| Rated output tolerance | ± 0.1 | % of Emax |
| Pepeatability | ± 0.010 | ± 0.006 | ± 0.006 | % of AL* |
Creep 30 minute
| ± 0.017 | ± 0.012 | ± 0.0010 | % of AL |
| Temp. effect on rated output +20...+40℃ | ± 0.00175 | ± 0.0013 | ± 0.00105 | % of AL/℃ |
| -10...+20℃ | ± 0.00117 | ± 0.0009 | ± 0.0007 |
| Temp. effect on zero balance | ±0.0028 | ±0.0014 | % of Emax/℃ |
| Hysteresis error | ± 0.0175 | ± 0.0131 | ± 0.0105 | % of Emax |
| Non-linearity error | ± 0.0175 | ± 0.0131 | ± 0.0105 | % of Emax |
| Min. dead load output return | ± 0.0166 | ± 0.0125 | ± 0.01 | % of AL |
| Excitation resistance | 350 ± 10 | Ω |
| Output resistance | 350 ± 3 | Ω |
| Insulation resistance @50VDC | ＞5000 | MΩ |
| Excitation voltage | Recommended | 10 | V AC/DC |
| Maximum | 15 | V AC/DC |
| Temperature range | Compensated | -10 to +40 | ℃ |
| Operating | -30 to +65 | ℃ |
| Safe storage | -40 to +80 | ℃ |
| Load limit | Safe | 150 | % of Emax |
| Ultimate | 300 | % of Emax |
| Protection | Type | Hermetically welded |
|
| IP rating | IP67 |
|
| OIML / European Approval | OIML Cert. No. | R60-2017-A-NL1-22.04 | R60-2017-A-NL1-20-28 |
|
| European Cert. No. | TC12252 | TC10977 |
|
| Class | C5 |
|
| nmax | 5000 |
|
| NTEP Approval | Cert. No. | 23-057 |
|
| Class | Ⅲ single cell and Class III L, Multiple cell |
|
| nmax | 4000 |
|
| Cable | Length | 3 | m |
| Type | 4 or 6 cores, PVC |
|
| Construction | Alloy steel |
|
| Recommended torque | 98 | N.m |
Notes: The values for linearity, hysteresis and temp. effect on rated output are recommended values, the sum of these data meets the requirements according to OIML R60. *AL: Applied load |
