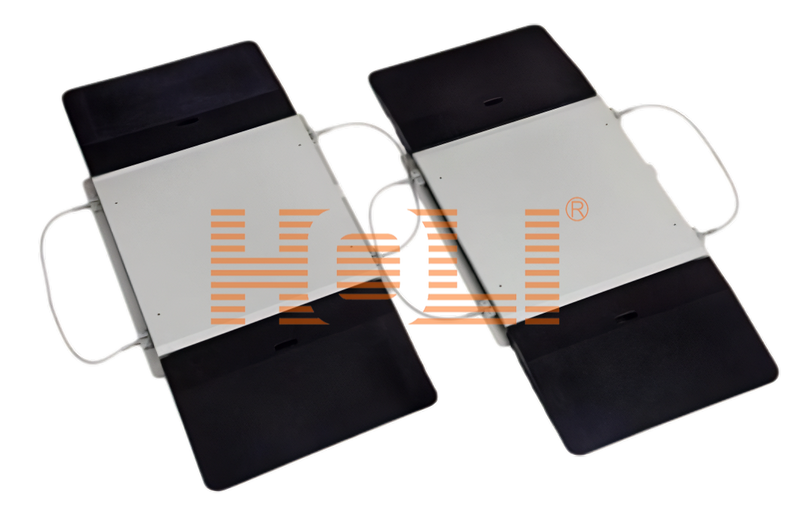

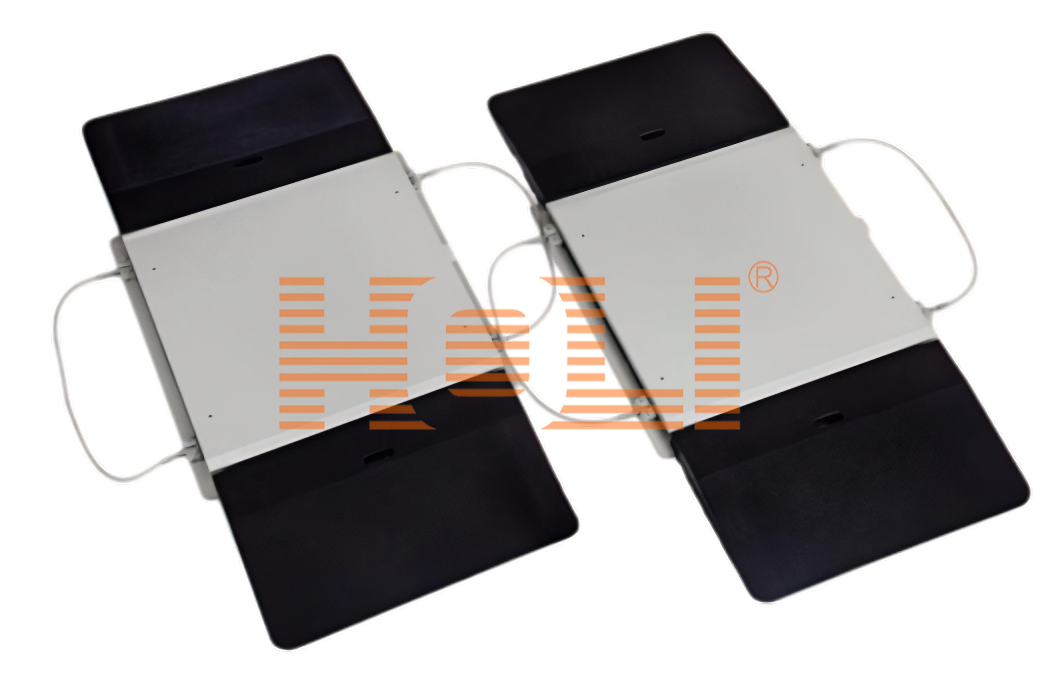

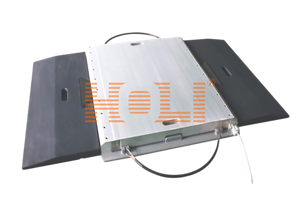

Mining Truck Scale

Are designed to measure the weight of heavy-duty trucks used in mining operations. These systems typically use load cells installed on weighbridges or scales to measure the force exerted by the truck's load.Accurate weight measurement is crucial for optimizing load management, ensuring safety, and improving operational efficiency.

Model:
AXM-100L/AXM-200S
Brand:
Holi
Certificates:
CE

Availability:

Quantity:



Inquiry Contact Now

Product Description

Features:

* High intensity mild steel construction,heavy duty structure.

* Multiple seal protection for tough working environment.

* Individual wheel and axle weights.

* Fully calibrated prior to shipment.

* Simple installation.

Specifications:
Model	AXM-100L	AXM-200S
Functional Area Dimension(mm)	1000(L)×1000(W) (39.37″×39.37″)	1000(L)×1000(W) (39.37″×39.37″)
Overall Size(mm)	2250(L)×1120(W)×84(H) (88.58″×44.09″×3.31″)	2250(L)×1120(W)×84(H) (88.58″×44.09″×3.31″)
Scale Quantity	2	4
Individual Scale Capacity	50t	50t
Max Capacity	100t(200,000lb)	200t(400,000lb)
Accuracy	1/2000	1/2000
Safe Load Protectiol	120%	120%
Connection	20m Cable/20m RF Wireless	20m Cable/20m RF Wireless
