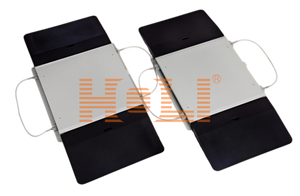

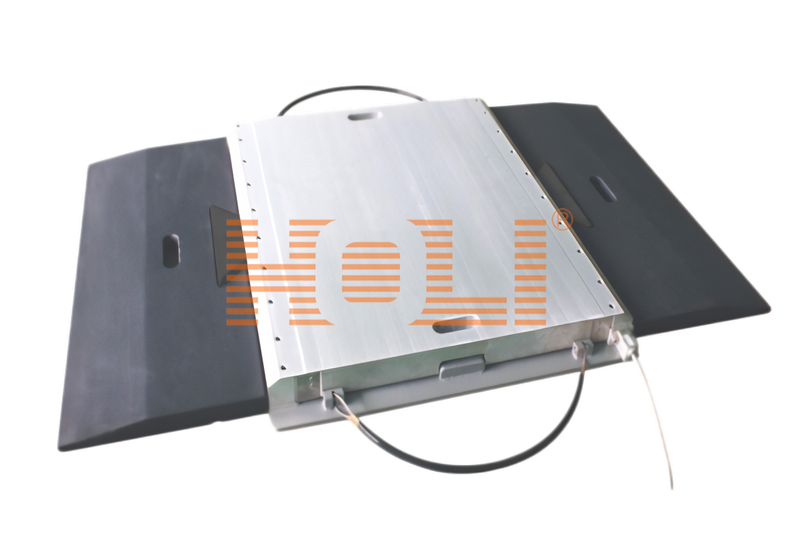

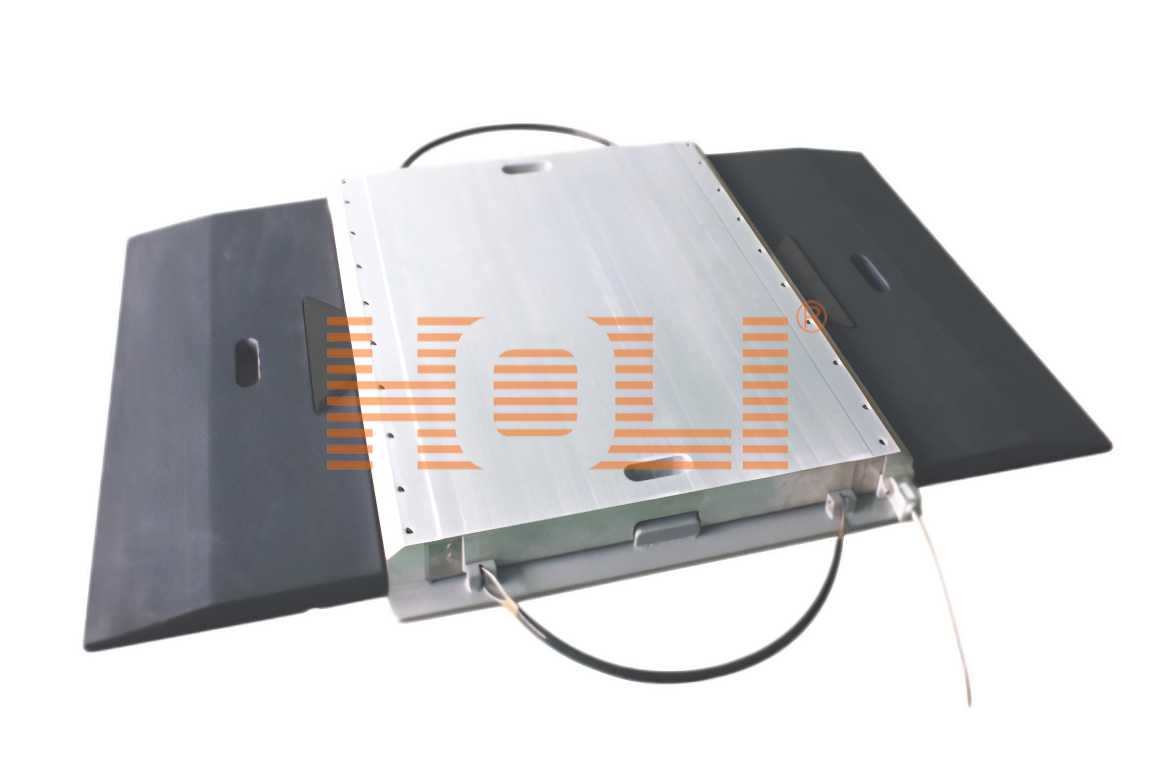

Mining Truck Scale AXM

Are designed to measure the weight of heavy-duty trucks used in mining operations. These systems typically use load cells installed on weighbridges or scales to measure the force exerted by the truck's load.Accurate weight measurement is crucial for optimizing load management, ensuring safety, and improving operational efficiency.

Model:
AXM-50/AXM-100S
Brand:
Holi
Certificates:
CE

Availability:

Quantity:



Inquiry Contact Now

Product Description

Features:

* Durable aluminium construction, heavy duty structure.

* Multiple seal protection for tough working environment.

* Individual wheel and axle weights.

* Fully calibrated prior to shipment.

* Simple installation.

Specifications:
Model	AXM-50	AXM-100S
Functional Area Dimension(mm)	700(L)×800(W) (27.56″×31.50″)	700(L)×800(W) (27.56″×31.50″)
Overall Size(mm)	1396(L)×940(W)×67(H) (76.77″×36.22″×3.31″)	1396(L)×940(W)×67(H) (76.77″×36.22″×3.31″)
Scale Quantity	2	4
Individual Scale Capacity	25t	25t
Max Capacity	50t(100,000lb)	100t(200,000lb)
Accuracy	1/2000	1/2000
Safe Load Protectiol	120%	120%
Connection	20m Cable/20m RF Wireless	20m Cable/20m RF Wireless
