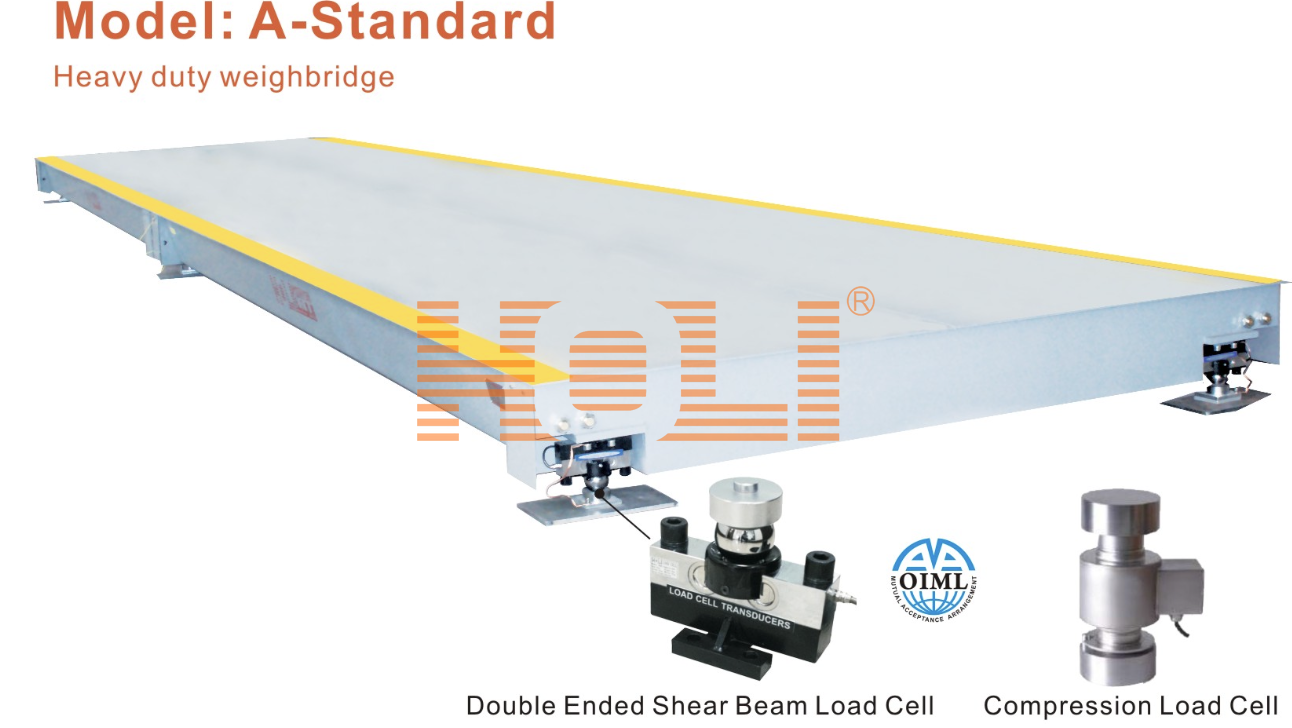

Heavy duty weighbridge
MODEL A-Standard Series Truck Scale is the perfect solution for any industry that requires reliable, accurate, and heavy-duty weighing of their truckloads. This high-performance truck scale is constructed with top-quality steel and durable load cells, making it a highly durable and long-lasting weighing solution.
| Dimension(m) | Axle Load (t) | Capacity(t) | Deck Plate | Surface Treatment | Specification |
| 3.0×6.0 | up to 15t
| up to 60t
| Smooth/ Checker
| Standard Paint/ Corrosion Protection Paint/ Sea Defend Epoxy Paint/ Deck Closing Paint | Load Cell:Correspondence with all Double Ended Shear Beam, Compression load cell in Analog/ Digital
Indicator: Correspondence with all available analog/ digital indicator
With Tool Box for Installation
Optional: Guide rail & Ramps
Features: * Heavy duty structure * Reliable,durable and accurate * Ideal for various truck types * Pit mounted or surface mounted
|
| 3.0×9.0 |
| 3.0×12 |
| 3.0×16 | up to 18t | up to 80t |
| 3.0×18 | up to 20t
| up to 150t
| Smooth/ Checker/ Anti-skidding |
| 3.2×18 |
| 3.5×18 |
| 4.0×18 |
| 3.0×22 |
| 3.2×22 |
| 3.5×22 |
| 3.0×24 |
| 3.2×24 |
| 3.5×24 |
| Weighbridge dimension and capacity can be customized to suit specific requirements. |
