HL6E Single Point Load Cell
Single Point Load Cell
HL6E Single Point Load Cell
Model:HL6E
Brand:Holi
Certificates:CE
Capacity: 30kg to 500kg
Request a Quote

Files & Downloads

Share

Product Description

The HL6E load cell from HOLI Scale is a high-precision, single point load cell. The HL6E stands distinctively ahead in the area of high-precision load cells. Crafted with meticulous attention to detail, it guarantees exceptional accuracy, making it an indispensable asset for any weighing requirement.

This load cell is rated for Precision C3, meaning it offers trusted accuracy for both personal and industrial applications. Its clever design makes installation quick and easy, saving you time while keeping results spot on.


Key Features:

  • Made from durable aluminium alloy steel

  • High-precision performance (rated Precision C3)

  • Great for bench scales, retail scales, and other scale parts

  • Easy to fit and reliable to use

  • Sturdy single structure for long life


If you're looking for a simple, accurate, and long-lasting single point load cell, the HL6E is a top choice that delivers on both quality and value.

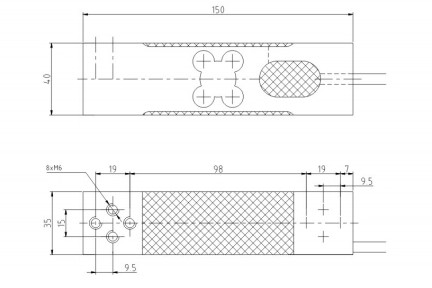

Product Dimensions(mm):

HL6E Single Point Load Cell

ModelProducts Description
HL6E-60kg-C3Aluminium Alloy steel, C3, 1.5m cable, 4wires.
HL6E-100kg-C3Aluminium Alloy steel, C3, 1.5m cable, 4wires.
HL6E-250kg-C3Aluminium Alloy steel, C3, 1.5m cable, 4wires.


Qualification
Load RatingKg60/100/250
Precision
C3
Maximum DivisionNmax3000
Minimum DivisionVminEmax/7000
Composition Error(%FS)≤±0.020
Creep Deformation(%FS/30min)≤±0.0167
The influence of temperature on the output sensitivity(%FS/10℃)≤±0.0175
The influence of temperature on the zero output(%FS/10℃)≤±0.020
Rated Output(MV/V)2.0±0.2
Input impedance(Ω)406±6
Output impedance(Ω)350±3
Insulation Resistance(MΩ)≥5000(50VDC)
Zero output(%FS)2
Temperature compensation range(℃)-10~+40
Working femperature range(℃)-35~+65
Recommend excitation voltage(V)5~12(DC)
Maximum excitation voltage(V)18(DC)
Safety overload range(%FS)150
Limit overload range
(%FS)300
Position Error
0.02%/100mm
