  • HBW Bending beam Load Cell

›

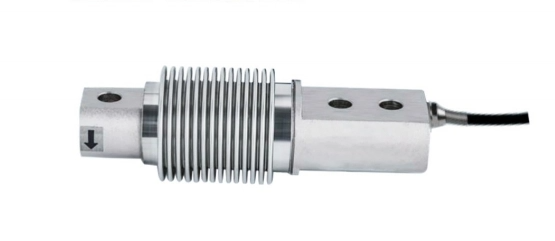

HBW Bending beam Load Cell
Bending beam Load Cell
HBW Bending beam Load Cell
Model:HBW
Brand:HOLI
Certificates:CE
Request a Quote
Contact Us

Files & Downloads

Share

Product Description

  • Capacity:50kg to 500kg

  • Stainless steel material Hermetically welded.

  • Easy Installation

  • Suitable for belt conveyor scale, Packing Scale ,Platform, etc.

  • Moisture and corrosion resistance

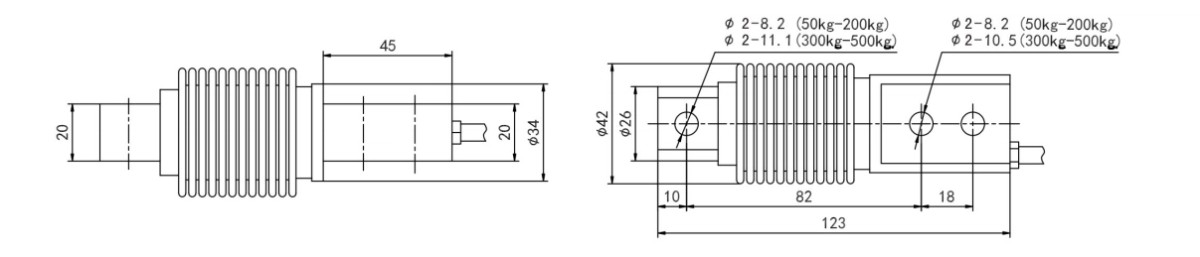

Product Dimensions(mm)：

HBW Bending beam Load Cell

Model
Products Description

HBW-5kg

Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores.

HBW-10kg

Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores.

HBW-20kg

Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores.

HBW-30kg

Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores.

HBW-50kg

Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores.

HBW-100kg

Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores.

HBW-200kg

Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores.

HBW-300kg

Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores.

HBW-400kg

Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores.

HBW-500kg

Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores.


Bending beam Load Cell Model HBW

Specifications

ParameterSpecifications

unit

Rated capacity (Emox)5/ 10/ 20/ 30/ 50/ 100/ 200
300/ 500kg
Accuracy classC3

Maximum number of LC intervals(nmax)3000

Min.LC verification interval(Vmin)Emax/10000g
Temp.effect on zero balance±0.0014

%of Emax/℃

Rated output2.0

mV/V

Rated output tolerance±0.1

%of Emax

Zero balance

±1.0

%of Emax

Temp.effect on rated output +20…+40℃

±0.00175

%of R.C./℃

Temp.effect on rated output -10…+20℃±0.00117
Hysteresis error±0.0167

%of Emax

Non-linearity error±0.0167

%of Emax

Min.dead load output return(3)±0.0167

%R.C.

Terminal resistance

Excitation

350±5

Ω

Output

350±3

Ω

Insulation resistance @50VDC

＞5000MQ

Excitation voltage

Recommended10V AC/DC
Maximum15V AC/DC

Temperature range

Compensated

-10 to+40

℃
Operating

-30 to+65

℃

Safe storage

-40 to+80℃

Load limit

Safe load120

%of Emax

Ultimate load150

%of Emax

Protection
Type

Hermetically welded


IP ratingIP68
Construction materials
Spring elementstainless
Metal bellowsstainless
Cable fittingstainless

ExApproval

Cert. No.

GYB19.2306


Class

Exia ICT4 Ga


Ex iaD 20 T135
Cable
Length2.5m
Type4-wire, PVC

Recommended torque2550N.m
