A/ASS
CE
| Quantity: | |
|---|---|

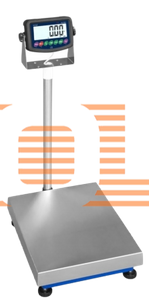

Constructed from either mild steel (Model A) or stainless steel (Model ASS) , it offers precise measurements and durability.
The scale features a user-friendly interface with a clear display, making it easy to operate. It's available to meet IP67 protection standards, ensuring reliable performance even in challenging environments.
| Model | Platform Size (mm) | Max Capacity (kg) | Division (g) | Recommend Lord cell | Standard Pole Height | Specifications |
| A/ASS | 250×250 | 30 | 5,10 | AL 130-50kg | 300mm | Display: LED 1.2″/LCD 1.6″ Working Temperature:-10~40℃ Communication: RS232/Bluetooth Pole Height: Custiomizable Standard: With/Without pole |
| 300×400 | 60 | 10,20 | AL 150-100kg | 500mm | ||
| 400×400 | 150 | 20,50 | AL 150-300kg | 500mm | ||
| 600×600 | 300 | 50,100 | AL 174-500kg | 660mm | ||
| 800×800 | 600 | 100,200 | AL 176-750kg | 660mm | ||
Platform size and weighing capacity could be customized according to specific requirements. Full packaging including load cell and indicator is available | ||||||
Constructed from either mild steel (Model A) or stainless steel (Model ASS) , it offers precise measurements and durability.
The scale features a user-friendly interface with a clear display, making it easy to operate. It's available to meet IP67 protection standards, ensuring reliable performance even in challenging environments.
| Model | Platform Size (mm) | Max Capacity (kg) | Division (g) | Recommend Lord cell | Standard Pole Height | Specifications |
| A/ASS | 250×250 | 30 | 5,10 | AL 130-50kg | 300mm | Display: LED 1.2″/LCD 1.6″ Working Temperature:-10~40℃ Communication: RS232/Bluetooth Pole Height: Custiomizable Standard: With/Without pole |
| 300×400 | 60 | 10,20 | AL 150-100kg | 500mm | ||
| 400×400 | 150 | 20,50 | AL 150-300kg | 500mm | ||
| 600×600 | 300 | 50,100 | AL 174-500kg | 660mm | ||
| 800×800 | 600 | 100,200 | AL 176-750kg | 660mm | ||
Platform size and weighing capacity could be customized according to specific requirements. Full packaging including load cell and indicator is available | ||||||
