Capacity:50kg to 500kg
Stainless steel material Hermetically welded.
Easy Installation
Suitable for belt conveyor scale, Packing Scale ,Platform, etc.
Moisture and corrosion resistance
| Model | Products Description |
HBW-5kg | Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores. |
HBW-10kg | Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores. |
HBW-20kg | Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores. |
HBW-30kg | Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores. |
HBW-50kg | Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores. |
HBW-100kg | Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores. |
HBW-200kg | Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores. |
HBW-300kg | Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores. |
HBW-400kg | Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores. |
HBW-500kg | Stainless steel, electrolytic polishing, 3m wire with 4 or 6 cores. |

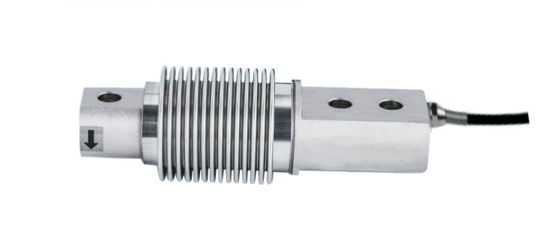

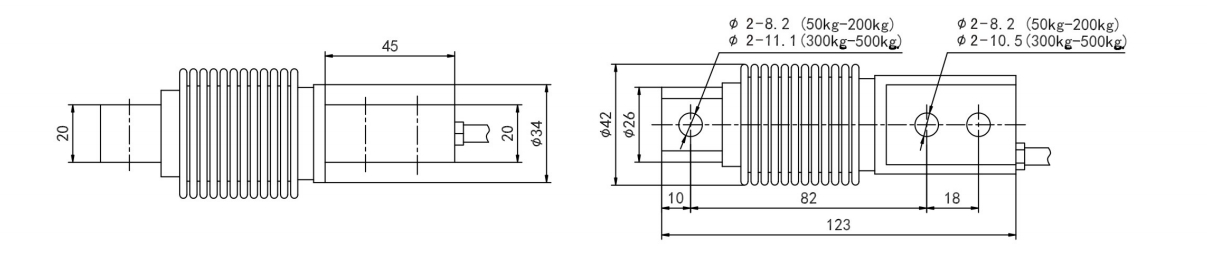

Bending beam Load Cell Model HBW | ||||
Specifications | ||||
| Parameter | Specifications | unit | ||
| Rated capacity (Emox) | 5/ 10/ 20/ 30/ 50/ 100/ 200 | 300/ 500 | kg | |
| Accuracy class | C3 | |||
| Maximum number of LC intervals(nmax) | 3000 | |||
| Min.LC verification interval(Vmin) | Emax/10000 | g | ||
| Temp.effect on zero balance | ±0.0014 | %of Emax/℃ | ||
| Rated output | 2.0 | mV/V | ||
| Rated output tolerance | ±0.1 | %of Emax | ||
| Zero balance | ±1.0 | %of Emax | ||
Temp.effect on rated output +20…+40℃ | ±0.00175 | %of R.C./℃ | ||
| Temp.effect on rated output -10…+20℃ | ±0.00117 | |||
| Hysteresis error | ±0.0167 | %of Emax | ||
| Non-linearity error | ±0.0167 | %of Emax | ||
| Min.dead load output return(3) | ±0.0167 | %R.C. | ||
Terminal resistance | Excitation | 350±5 | Ω | |
Output | 350±3 | Ω | ||
Insulation resistance @50VDC | ＞5000 | MQ | ||
Excitation voltage | Recommended | 10 | V AC/DC | |
| Maximum | 15 | V AC/DC | ||
Temperature range | Compensated | -10 to+40 | ℃ | |
| Operating | -30 to+65 | ℃ | ||
Safe storage | -40 to+80 | ℃ | ||
Load limit | Safe load | 120 | %of Emax | |
| Ultimate load | 150 | %of Emax | ||
| Protection | Type | Hermetically welded | ||
| IP rating | IP68 | |||
| Construction materials | Spring element | stainless | ||
| Metal bellows | stainless | |||
| Cable fitting | stainless | |||
ExApproval | Cert. No. | GYB19.2306 | ||
| Class | Exia ICT4 Ga | |||
| Ex iaD 20 T135 | ||||
| Cable | Length | 2.5 | m | |
| Type | 4-wire, PVC | |||
| Recommended torque | 25 | 50 | N.m | |
