HOLI C5P Plastic Junction Box – Reliable, Safe and Weather-Resistant

The HOLI C5P Junction Box is a solid and dependable solution for connecting scale parts. Built with a sturdy plastic case, it offers excellent protection while keeping things lightweight and easy to handle.

This junction box is rated IP66, meaning it’s well protected against dust and powerful water jets – ideal for outdoor or industrial use. It also comes fitted with top-grade HUMMEL Connectors, ensuring tight and long-lasting connections for your weighing systems.

Whether you're setting up a new scale or upgrading an old one, the C5P offers both performance and peace of mind.

Specifications:

• Housing material: Plastic

• IP rating: lP66

• Max number of load cells: 4PCS

• Trimming: Individual cell with excitation or signal trim

• Connector: M16 plastic connectors

• Install Dimension: 4-φ7mm

• Mounting hole center: 138-143mm

• Dimension: 210×167×68mm

• Optional: HUMMEL Connectors

Choose the HOLI C5P Junction Box for secure, worry-free connections in all types of environments.

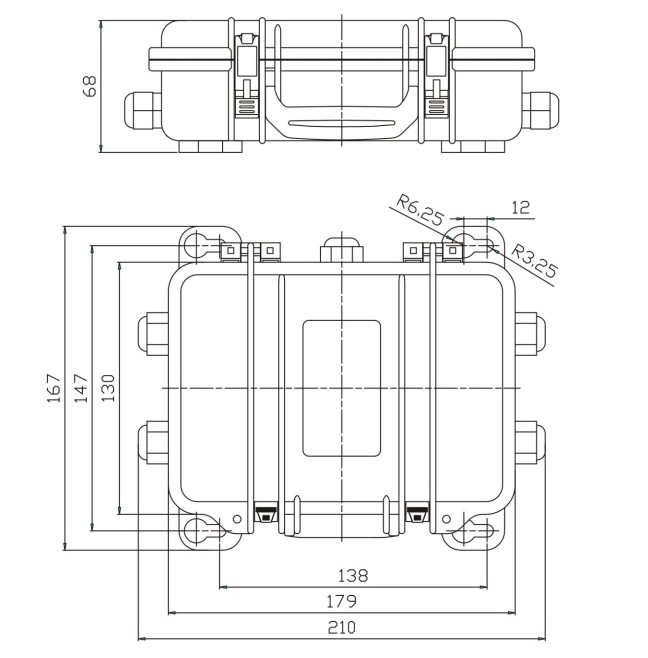

Dimension(mm):
