FAW-A Fixed Axle Weighing Scale

FAW-A Light Duty / Heavy Duty Axle Scale is a high-performance weighing solution designed for heavy-duty vehicles, such as trucks and trailers. This advanced scale system is ideal for use in a wide range of applications, including transportation, logistics, mining, and agriculture.

Model:
FAW-A
Brand:
Holi
Certificates:
CE

Availability:

Quantity:



Inquiry Contact Now

Product Description

Features:

* Reinforced platform, durable construction.

* High accuracy.

* Axle-by-Axle weighing.

* Highly portable and easy to use.

* Pit-mounted.

* Small foor area, small amount of foundation construction, easy to move.

* Can be used for dynamic weighing or static weighing.

* Customized by lane width.

Axle Type	Dimension(m)	Capacity(t)	Deck Plate	Surface Treatment	Specifications

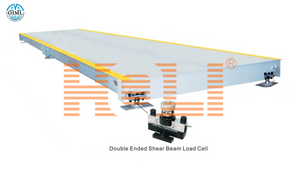

Single Alxe	3.2(W)×0.76(L) 10.5'(W)×2.5'(L)	15(30,000lb)	Smooth/Checker	Standard Paint/ Corrosion Protection Paint/ Sea Defend Epoxy Paint/ Deck Closing Paint	Load Cell:Correspondence with all Shear Beam load cell in Analog/Digital. Indicator:Correspondence with all available analog/ digital indicator. Junction box:Stainless steel/plastic junction box. Cable:Standard/double shield cable.
Double Axle	3.2(W)×2.2(L) 10.5'(W)×7.22'(L)	35(70,000lb)
Triple Axle	3.4(W)×3.4(L) 11.15'(W)×11.15'(L)	55(110,000lb)
Fixed Axle Weighing Scale dimension and capacity can be customized to suit specific requirements
