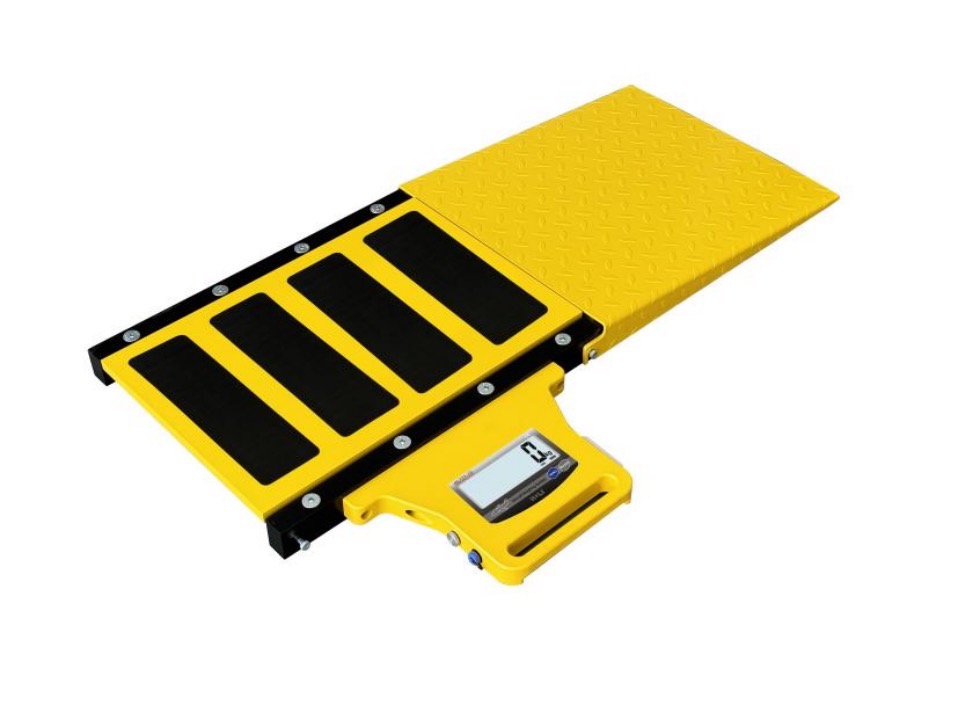

* 6061-T651 aviation aluminum alloy scale body. Mild steel ramp.
* Portable design easy to transport and set up.
* 1.6'' LCD display, easy-to-read digital displays show weight measurements instantly.
* Consisting of 3、5 or even more weighing pads and 1 touch screen wired indicator.
* Single Pad weight 26.2kg, Single Ramp weight 16.1kg.
Specifications: | ||
Model | AC10 | AC15 |
| Functional Area Dimension(mm) | 570(L)×380(W) (22.44″×14.96″) | 570(L)×380(W) (22.44″×14.96″) |
| Platform Dimension(mm) | 570(L)×456(W)×55(H) (22.44″×17.95″×2.17″) | 570(L)×456(W)×55(H) (22.44″×17.95″×2.17″) |
| Beveling Dimension(mm) | 560(L)×471(W) (22.05″×18.54″) | 560(L)×471(W) (22.05″×18.54″) |
Max Capacity | 10,000kg (20,000 lb) | 15,000 kg (30,000 lb) |
Division | 1kg, 2kg, 6kg, 10kg | 1kg, 2kg, 6kg, 10kg |
Weighing Accuracy | 1/3000 | 1/3000 |
Load Cell | 8pcs | 8pcs |
Working Temperature | -10~+50℃ | -10~+50℃ |
Working Time | 120 Hours | 120 Hours |
Standard Cable Length | 20m | 20m |
